Removing orientation lighting (LED light-emitting diodes)

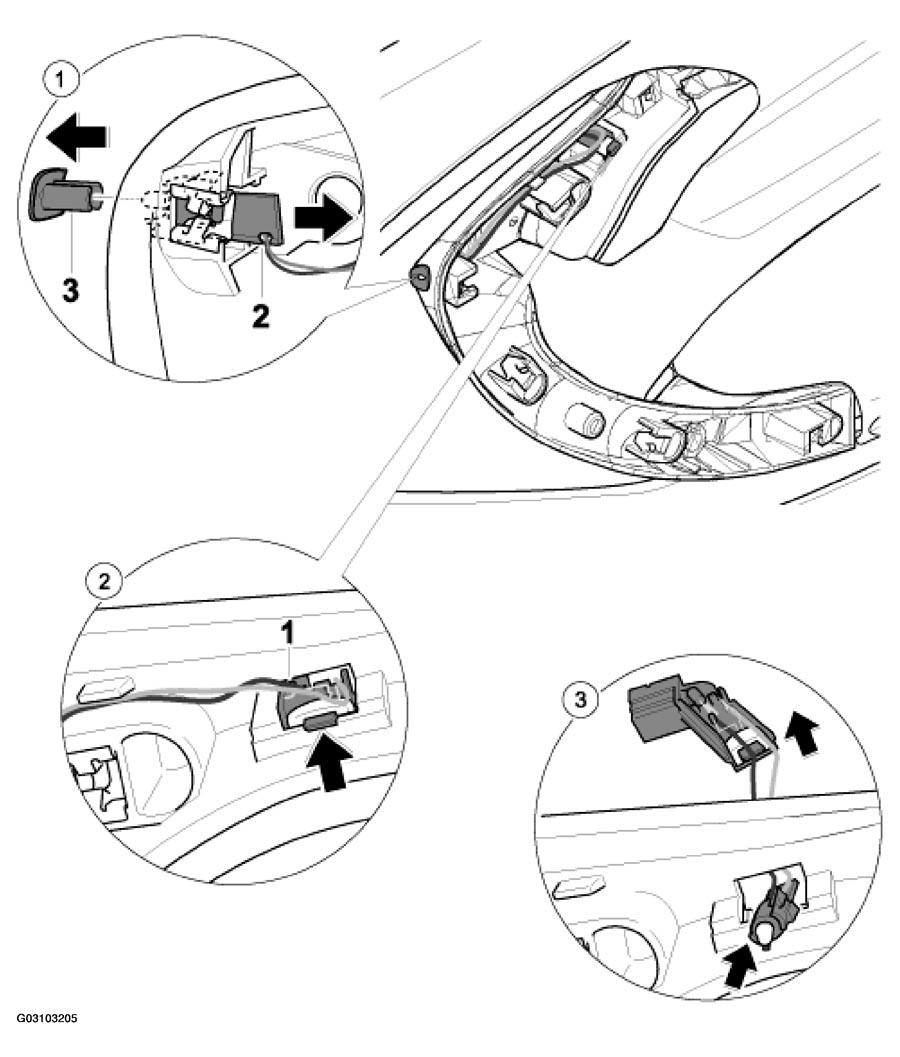

Fig 1: Removing Orientation Lighting (LED Light-Emitting Diodes)
G03103205Courtesy of PORSCHE OF NORTH AMERICA, INC.
ORIENTATION LIGHTING (LED LIGHT-EMITTING DIODES) REMOVAL PROCEDURE AND INSTRUCTION

No. Procedure Instructions
1 Removing light-emitting diode housing -2-  Pull light-emitting diode housing -2-, -3-
2 Removing light-emitting diode housing -1-  Raise the lug -arrow-1-
3 Pulling LED unit out into the door handle Pull LED unit out of the door handle to the rear.
