Installing orientation lighting (LED light-emitting diodes)

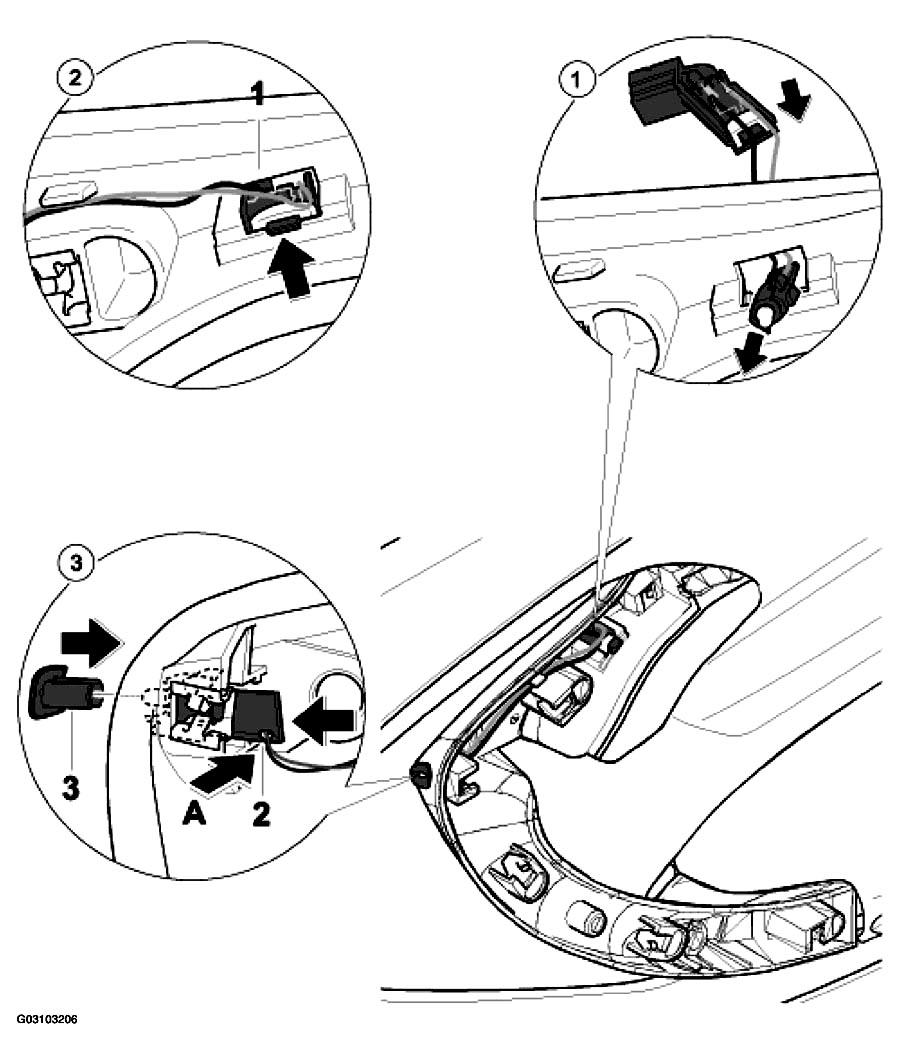

Fig 1: Installing Orientation Lighting (LED Light-Emitting Diodes)
G03103206Courtesy of PORSCHE OF NORTH AMERICA, INC.
ORIENTATION LIGHTING (LED LIGHT-EMITTING DIODES) INSTALLATION PROCEDURE AND INSTRUCTION

No. Procedure Instructions
1 Inserting LED unit into the door handle Insert LED unit into the door handle from the rear.
2 Installing light-emitting diode housing -1-  Insert the light-emitting diode housing -1-arrow-
3 Installing light-emitting diode housing -2- Position the light-emitting diode housing -2-, -  arrow A, -3-
