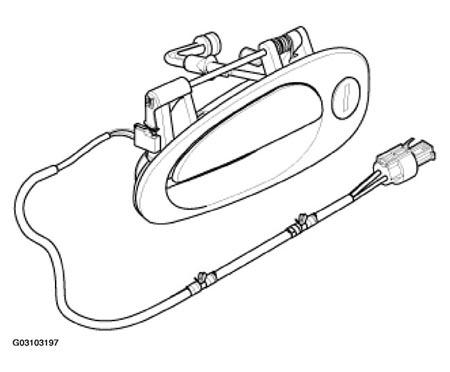

Disassembling and assembling door handle
CAUTION:
There is a danger of injury if fingers or hands are trapped by the door window when the comfort function is triggered: lower and raise door window!
- When carrying out assembly work in the area of the connection piece, the bottom part of the door handle and the door lock, the fuse No. 1 in row D must be removed!
DOOR HANDLE REMOVAL AND INSTALLATION PROCEDURE AND INSTRUCTION

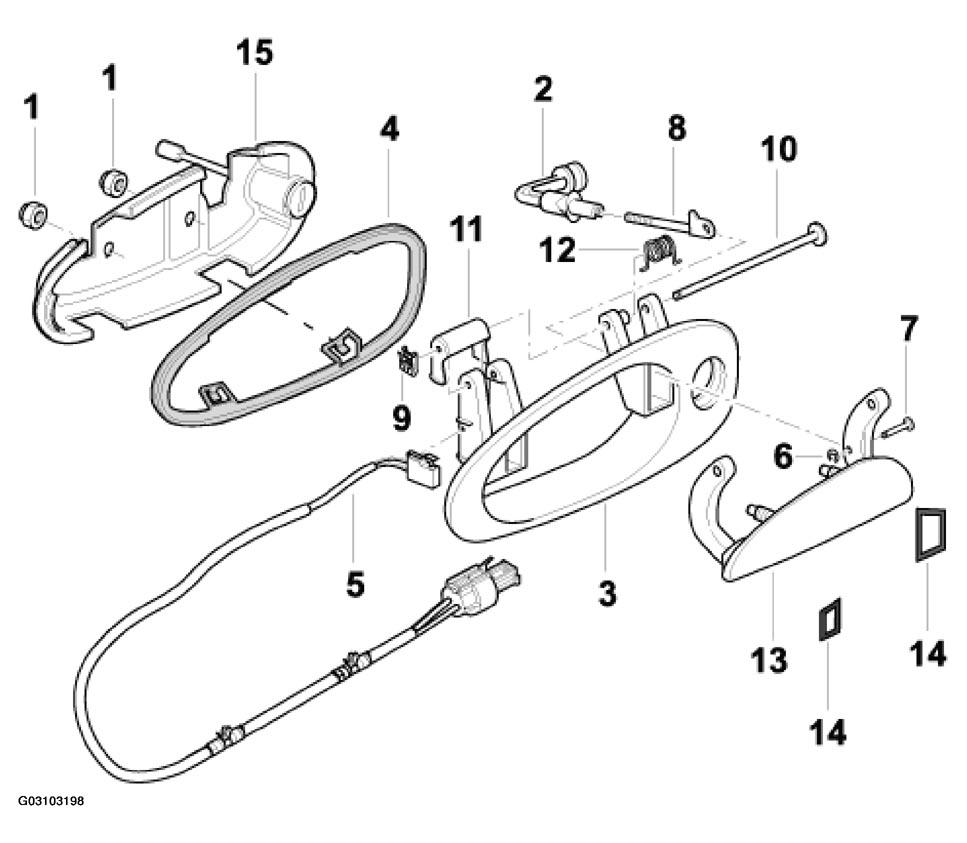

| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | M6 collar nut | 2 | Undo. | |
| 2 | Connection piece | 1 | Shift sliding piece of the connection piece and unclip actuating shaft -8- | |
| 3 | Handle liner | 1 | Pull out handle liner downward at an angle. | |
| 4 | Base | 1 | Unclip. | Clip in. |
| 5 | Microswitch | 1 | Unclip. | Clip in. |
| 6 | Circlip | 1 | Press out. | Press in. |
| 7 | Pin | 1 | ||
| 8 | Actuating shaft | 1 | Pull pin -7, -13- | Position actuating shaft on the handle -No. 13, -7, -6- |
| 9 | S retainer | 1 | ||
| 10 | Pin rod | 1 | Replace. | |
| 11 | Eccentric | 1 | ||
| 12 | Return spring | 1 | ||
| 13 | Handle | 1 | Pull pin rod -10, -3- | Position return spring -12,-11, -3, -10, -9- |
| 14 | Buffer | 2 | Pull off. | Replace. |
| 15 | Door handle bottom part | 1 |
