Diagram: sheet metal clips and grommets

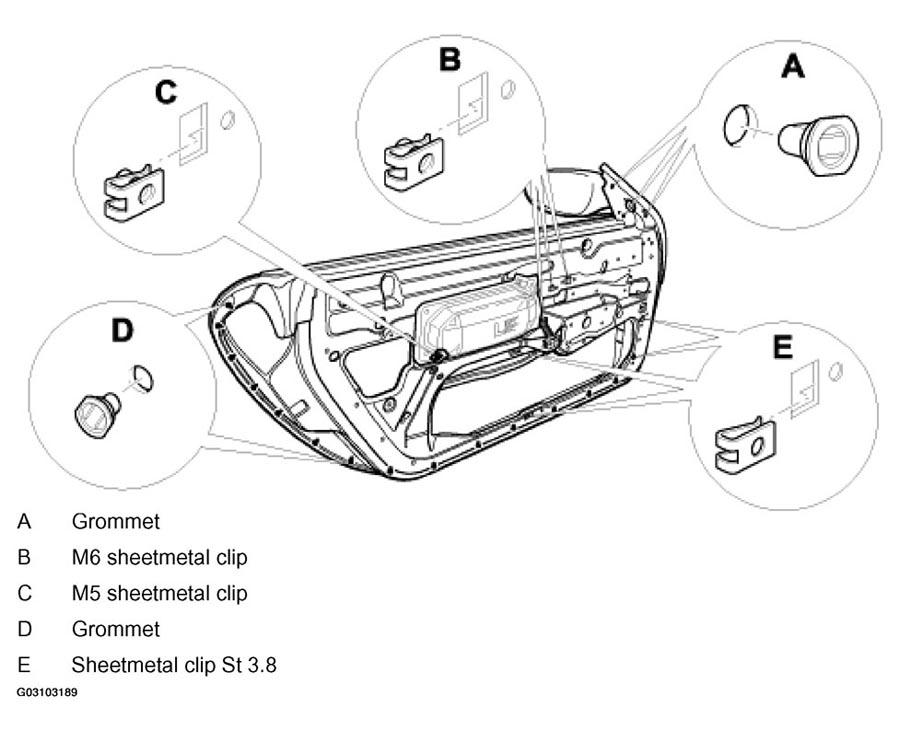

Fig 1: Locating Door Sheet Metal Clips And Grommets
G03103189Courtesy of PORSCHE OF NORTH AMERICA, INC.

A: Grommet

B: M6 sheetmetal clip

C: M5 sheetmetal clip

D: Grommet

E: Sheetmetal clip
