Adjusting the lower stop of the power window unit

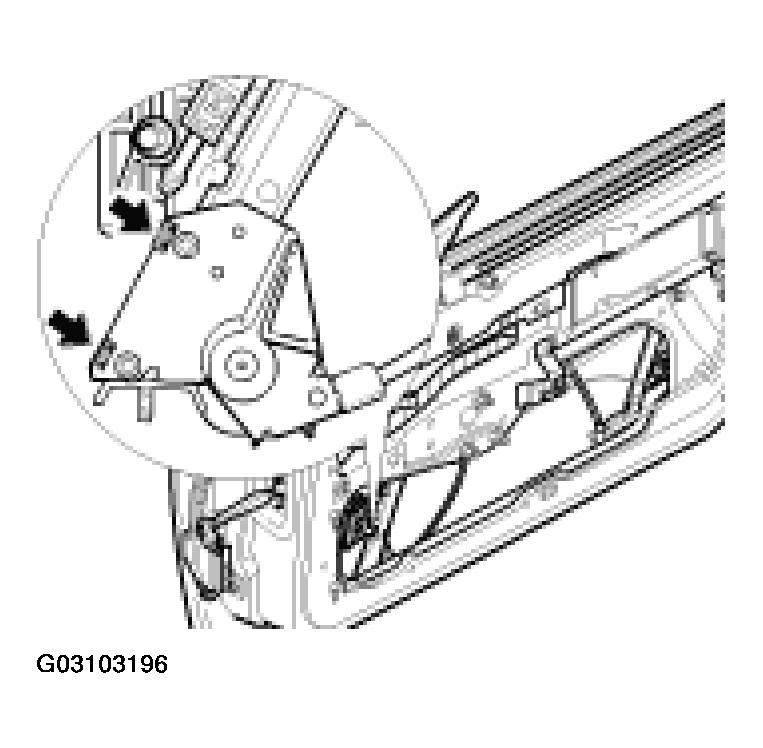

Fig 1: Adjusting Lower Stop Of Power Window Unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• When replacing the power window unit, make sure that the correct position of the lower limit stop is selected for the respective model.
• There are two bores lying one above the other with the screwed-on limit stops in the iron t power window unit rail.
• The upper limit stop must be removed for the 911 Carrera (996) model.
