Removing and installing front bumper

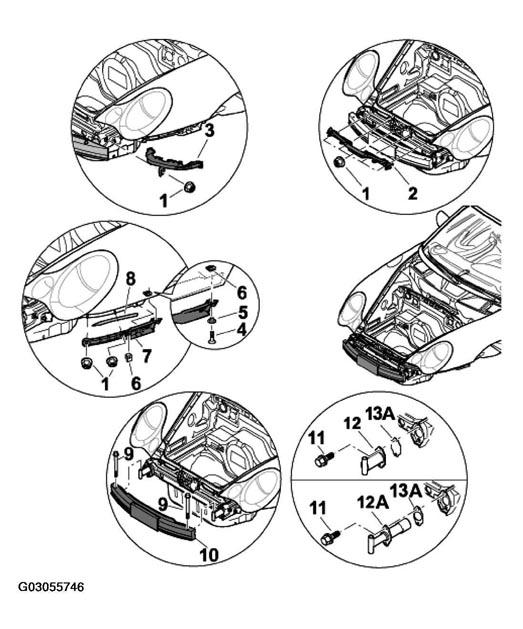

Fig 1: Removing And Installing Front Bumper Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT BUMPER COMPONENTS REMOVAL AND INSTALLATION PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Collar nut	9
2	Retaining strip, centre	1	Unscrew collar nut -1-2- . See Fig 1 .	Position centre retaining strip -2-1-1- . See Fig 1 .
3	Support, left and right resp.	1	Unscrew collar nut -1-3-3- . See Fig 1 .	Clip support -3-1-1- . See Fig 1 .
4	Sheetmetal screw St 4.8 x 19	2
5	Spacer sleeve 5.2 x 14	2
6	Sheetmetal nut St 4.8	4		Inspect and replace if necessary.
7	Left and right retaining strip	1	Unscrew collar nuts -1-4-7- . See Fig 1 .	Position retaining strip -7-7-1-4-1-4- . See Fig 1 .
8	Protective foil left, transparent foil on right	2		Inspect and replace if necessary.
9	Hexagon-head bolt M12 x 1.5 x 100	2
10	Bumper mount	1	Unscrew hexagon-head bolt -9-10- . See Fig 1 .	Attach bumper mount -10-12, 12A-9-9- . See Fig 1 .
11	Combination screw M8 x 30	4
12	Impact pipe	2	Undo combination screw -11-12-13- . See Fig 1 .	Fix impact pipe -12-13-11-11- . See Fig 1 .
12A	USA version, impact absorber	2	Undo combination screw -11-12A-13A- . See Fig 1 .	Fix impact absorber -12A-13A-11-11- . See Fig 1 .
13	Seal	2		Inspect and replace if necessary.
13A	USA version, impact absorber seal	2		Inspect and replace if necessary.
