Additional instructions for replacing the rear spoiler

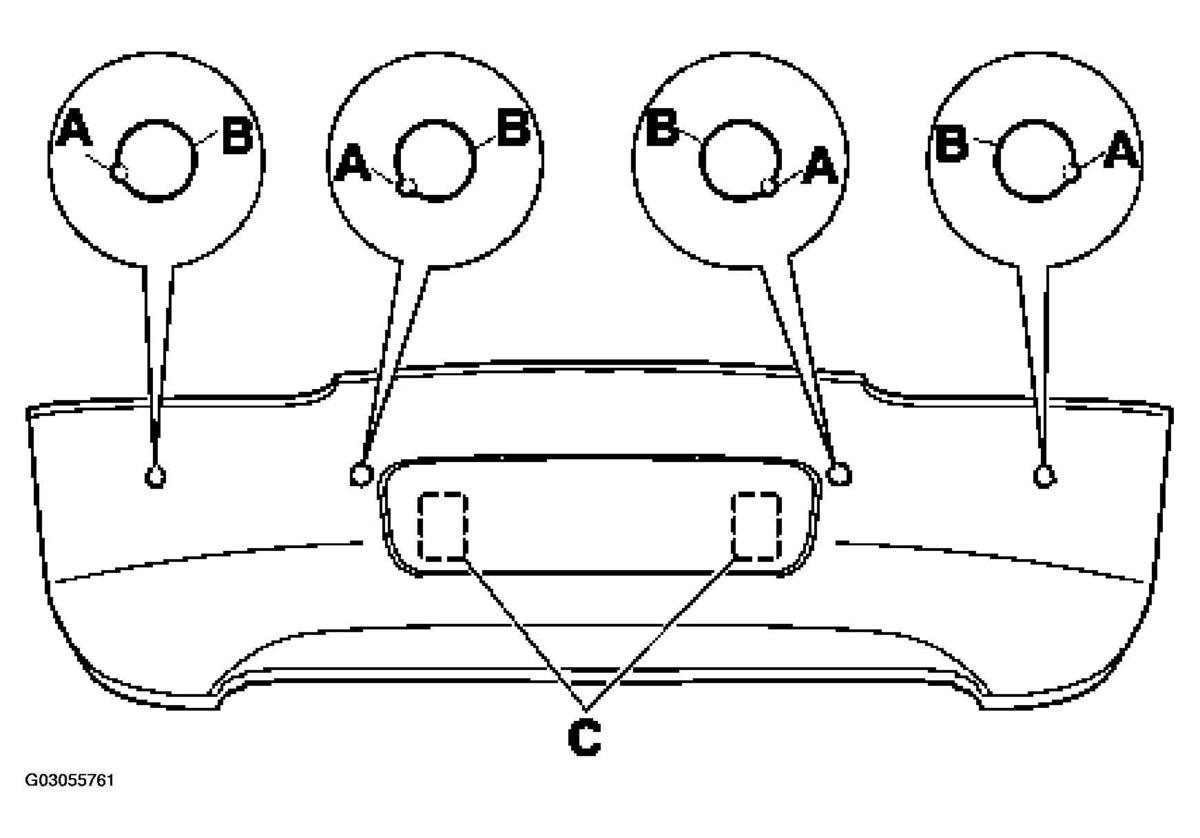

Fig 1: Identifying Marking For Holes And Cut Outs Inside Rear Spoiler

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• Additional holes must be drilled for the Park Assist sensors in the rear spoiler before this component is painted.
• Drill holes in accordance with the markings inside the rear spoiler.

1. Drill holes -A-  with 6 mm. See Fig 1 .
2. Enlarge holes -B-  to 35 mm using a stepped drill or centre bit. See Fig 1 .
3. Check holes by putting on a disc of the Park Assist sensor or by inserting the sensor.
4. Rework the holes if necessary.
   NOTE: Additional cut-outs must be made for the impact horns (USA version) in the rear spoiler before the new component is painted.
5. Saw out cut-outs -C-  in accordance with the markings inside the rear spoiler. See Fig 1 .
