Welding in wheel housings and side members

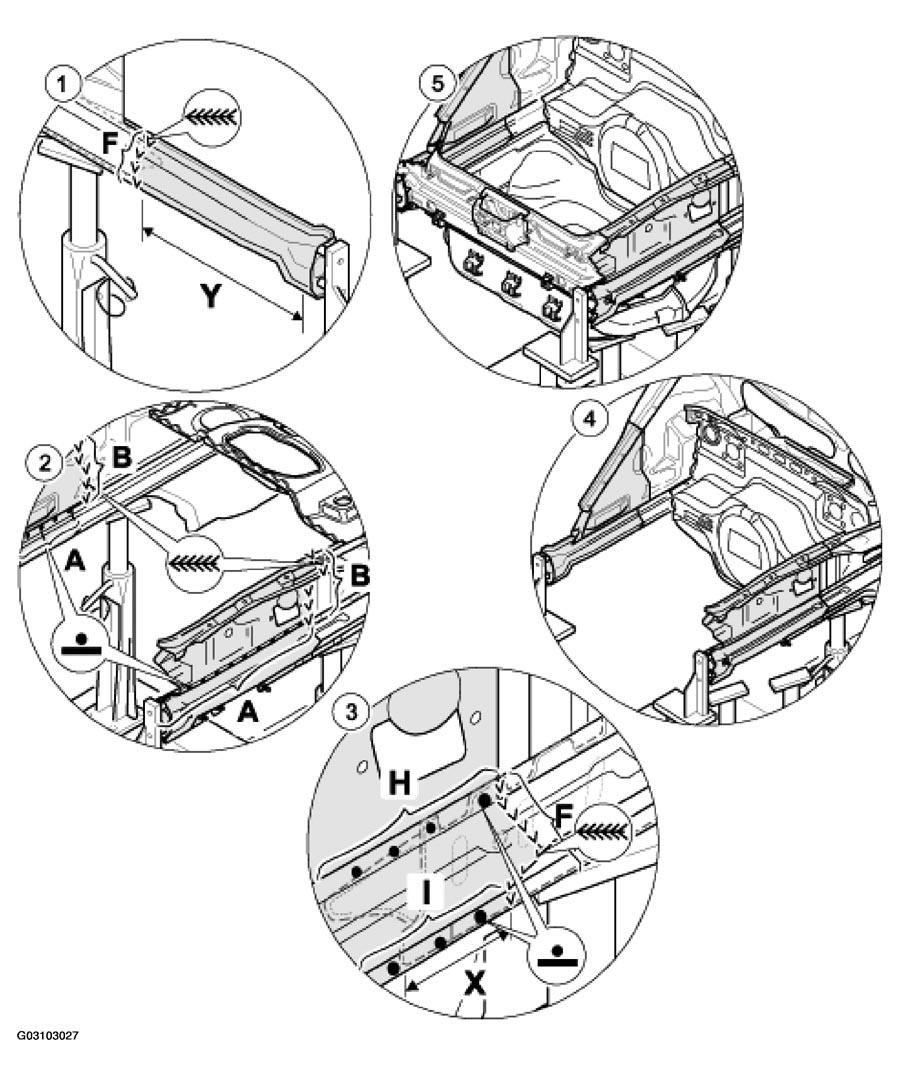

Fig 1: Welding In Wheel Housings And Side Members

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WHEEL HOUSINGS AND SIDE MEMBERS WELDING PROCEDURE AND INSTRUCTIONS

No.	Procedure	Instructions
1	Welding in the inner side member.	Weld the inner side member with a full butt weld -F-
2	Welding in wheel housings.	Spot-weld wheel housings and inner side members -A--B-
3	Welding in the outer side member.	Spot-weld the outer side member to the inner side member -H, I-F-
4	Welding in front wall	Refer to WELDING IN FRONT WALL
5	Welding in panel closing panel and front floor	Refer to WELDING IN CLOSING PANEL AND FRONT FLOOR PANEL
