Preparing wheel housing and side members for installation and fitting

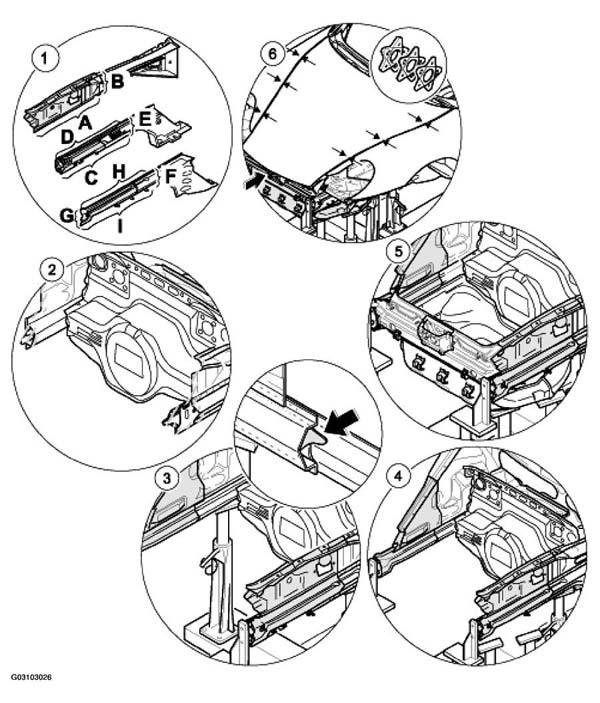

Fig 1: Preparing Wheel Housing And Side Members For Installation And Fitting

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WHEEL HOUSING AND SIDE MEMBERS PREPARATION PROCEDURE AND INSTRUCTIONS FOR INSTALLATION AND FITTING

No.	Procedure	Instructions
1	Preparing spare parts	Transfer cut to the spare front wheel housings and then cut to size, -dimension X = 50 mm--A, B, C, D, E, F, G, H, I-
		Cut spare side members to size with the body saw and fit in such a way that an offset of -dimension X = 50 mm--A, B, C, D, E, F, G, H, 1-
2	Cleaning the welding areas	Remove underbody coating and paint layers, etc. from the welding areas of the body with a hot-air gun or rotary brush.
3	Fitting the side members and wheel housing in the body and fastening them on the straightening attachments.	Fasten the spare inner side member on the straightening attachment for the front-axle mount or on the straightening attachments for the impact pipes (impact absorbers) and fit it in.
4	Fitting in front wall	Refer to REPLACING FRONT WALL
5	Fitting the front floor panel in the body and fastening it on the straightening attachment.	Refer to REPLACING CLOSING PANEL
6	Fitting in wings and front lid	Fit the left and right wings and fit in the front lid.
