Preparing wheel housing, lower shell and outer side member for installation and fitting

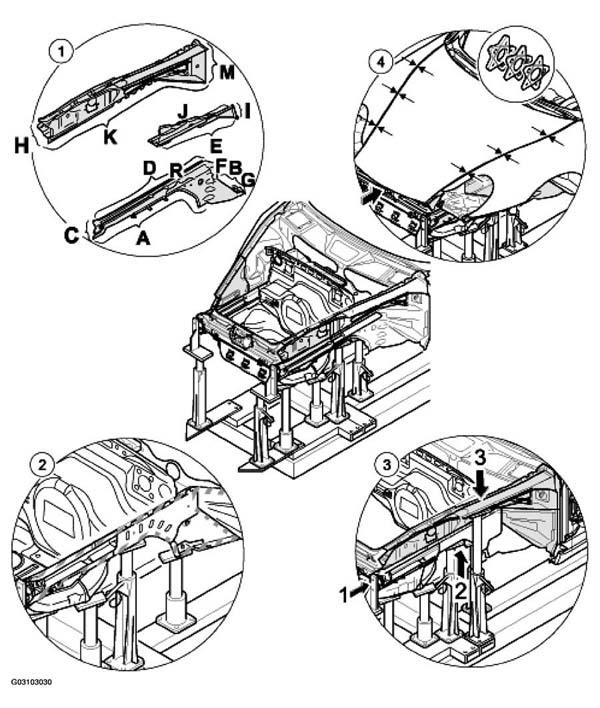

Fig 1: Preparing Wheel Housing, Lower Shell And Outer Side Member For Installation And Fitting

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WHEEL HOUSING, LOWER SHELL AND OUTER SIDE MEMBER PREPARATION PROCEDURE AND INSTRUCTIONS FOR INSTALLATION AND FITTING

No.	Procedure	Instructions
1	Preparing spare parts	Remove the factory-applied primer on the welding areas of the spare parts -A, B, C, D, E, F, G, H, I-
2	Cleaning the welding areas	Remove underbody coating and paint layers, etc. from the welding areas of the body with a hot-air gun or rotary brush.
3	Inserting outer side member, wheel housing into the body	Straightening attachment -2, -1-,-3-
4	Fitting in wings and front lid	Fit the left and right wings and fit in the front lid. Refer to REMOVING AND INSTALLING THE FENDER
