Welding in front wall

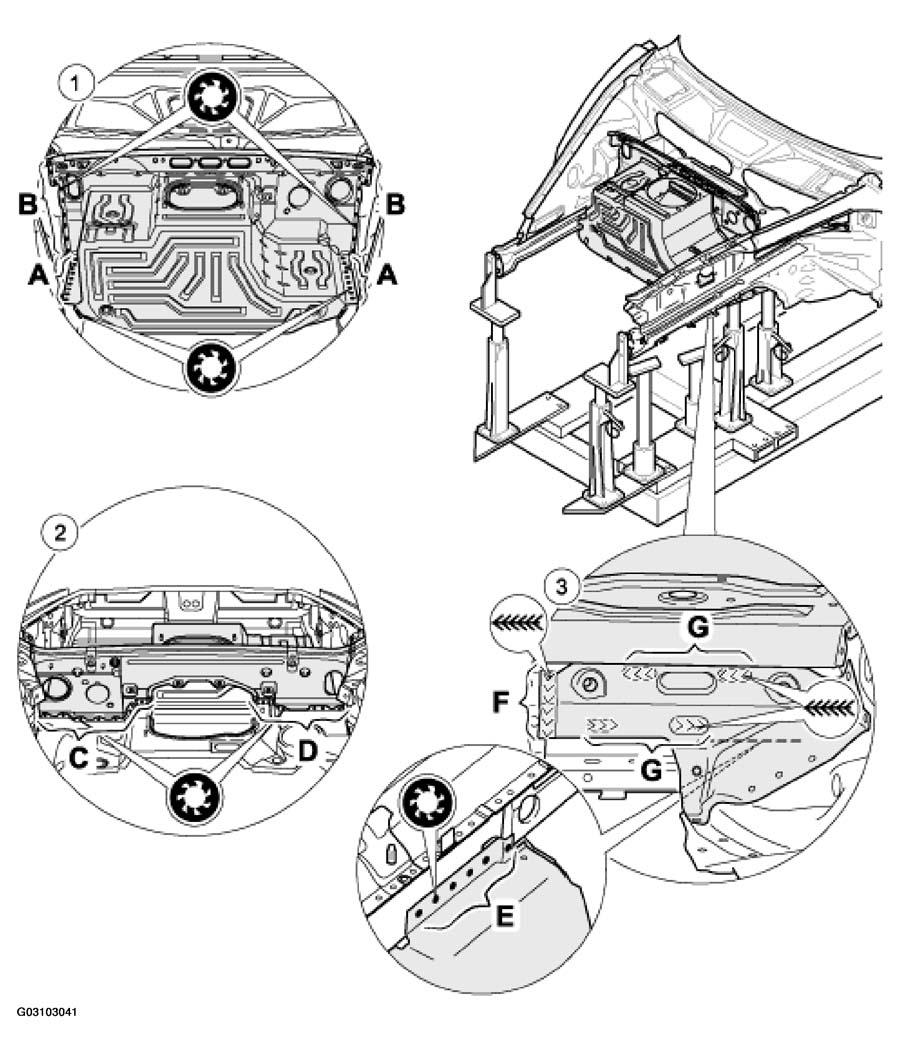

Fig 1: Welding In Front Wall - Carrera 4 /GT 3

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT WALL WELDING PROCEDURE AND INSTRUCTIONS - CARRERA 4 /GT 3

No.	Procedure	Instructions
1	Plug-welding front wall/side members and wheel housings	Plug-weld front wall to the side members and wheel housing -A, B-
2	Plug-welding radiator tank/front wall.	Plug-weld radiator tank to the front wall -C, D-
3	Welding the front wall/side members under shielding gas	Weld front wall at the bottom to the side member -E-, -F, G-
