Preparing front wall for installation and fitting
FRONT WALL PREPARATION PROCEDURE AND INSTRUCTIONS FOR INSTALLATION AND FITTING - CARRERA 4 /GT 3
| No. | Procedure | Instructions |
|---|---|---|

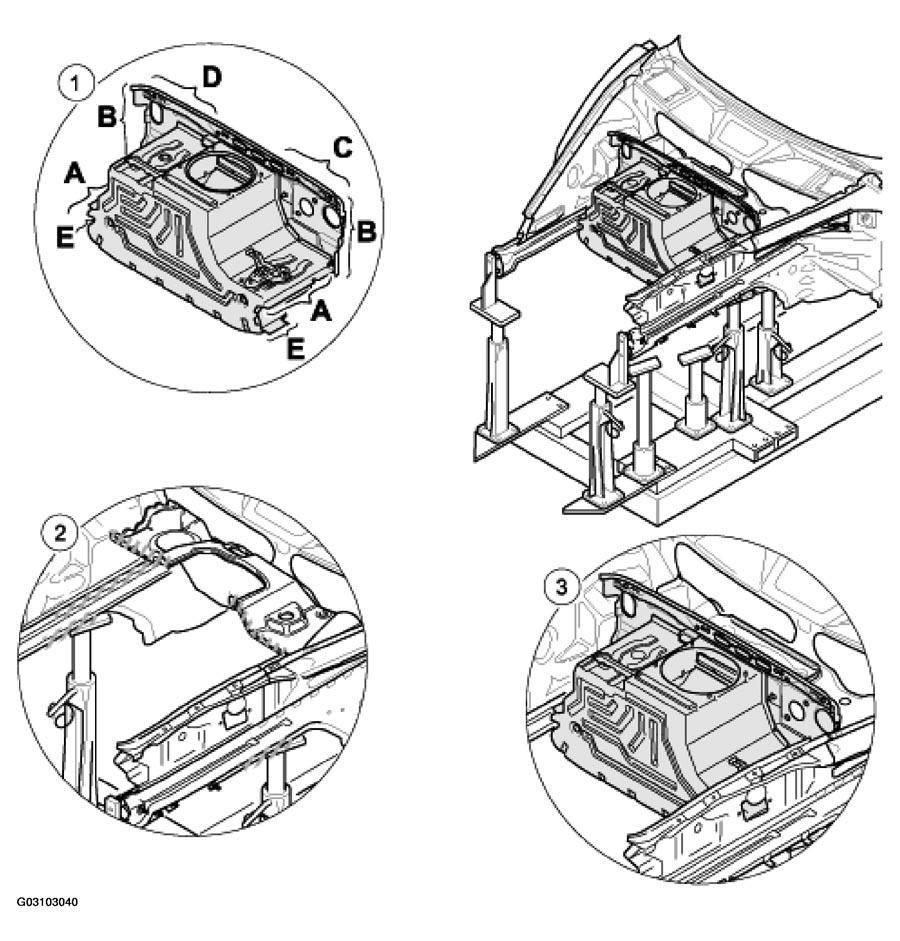

| 1 | Preparing spare parts | Remove the factory-applied primer on the welding areas of the spare parts -A, B, C, D, E- |
| 2 | Cleaning the welding areas | Remove underbody coating and paint layers, etc. from the welding areas of the body with a hot-air gun or rotary brush. |
| 3 | Inserting the front wall into the body | Fit the spare front wall on the side members and on the radiator tank. |
| Fit in the subsequent parts. Refer to REPLACING CLOSING PANEL |
