Cutting out front wall
WARNING:
During body repairs, the following safety instructions and the general information and quality instructions must be followed. Refer to SAFETY NOTES
.
NOTE:
- The accessories in the repair area should be removed, depending on the extent of the damage.
- All straightening work on the body in this area must have been completed before the damaged parts are removed.
FRONT WALL CUTTING PROCEDURE AND INSTRUCTIONS - CARRERA 4 /GT 3
| No. | Procedure | Instructions |
|---|---|---|
| Cutting out closing panel and front floor panel | Refer to REPLACING CLOSING PANEL | |
| Placing vehicle on the alignment bench | Place the vehicle with the units installed at the rear onto the set of straightening attachments and fasten in place. | |

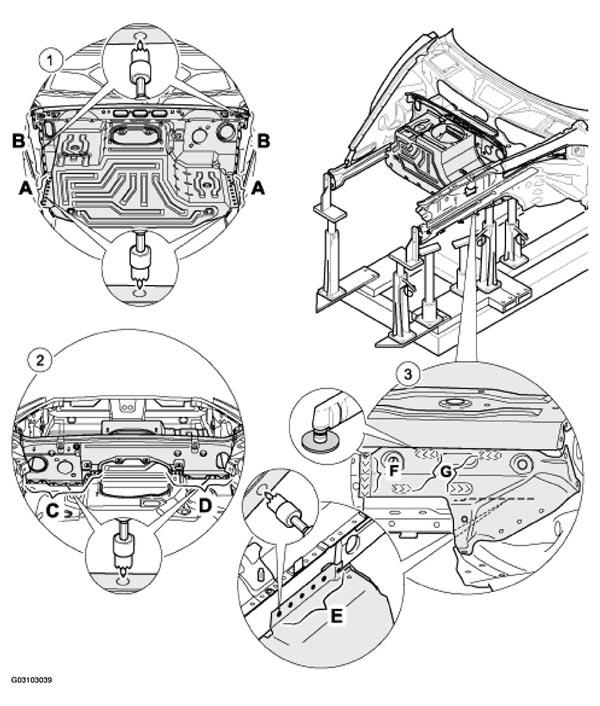

| 1 | Separating spot-welded joints between front wall/side members and wheel housings | Separate spot-welded joints of the front wall to the side members -A-, -B- |
| 2 | Separating spot-welded joints between the radiator tank and front wall | Separate the spot-welded joints of the radiator tank to the front wall from the inside (radiator-tank side) -C, D- |
| 3 | Separating spot-welded joints and MIG seams between the front wall and side members. | Separate spot welds of the front wall at the bottom to the side member -E-, -F, G- |
