Welding in closing panel and front floor panel

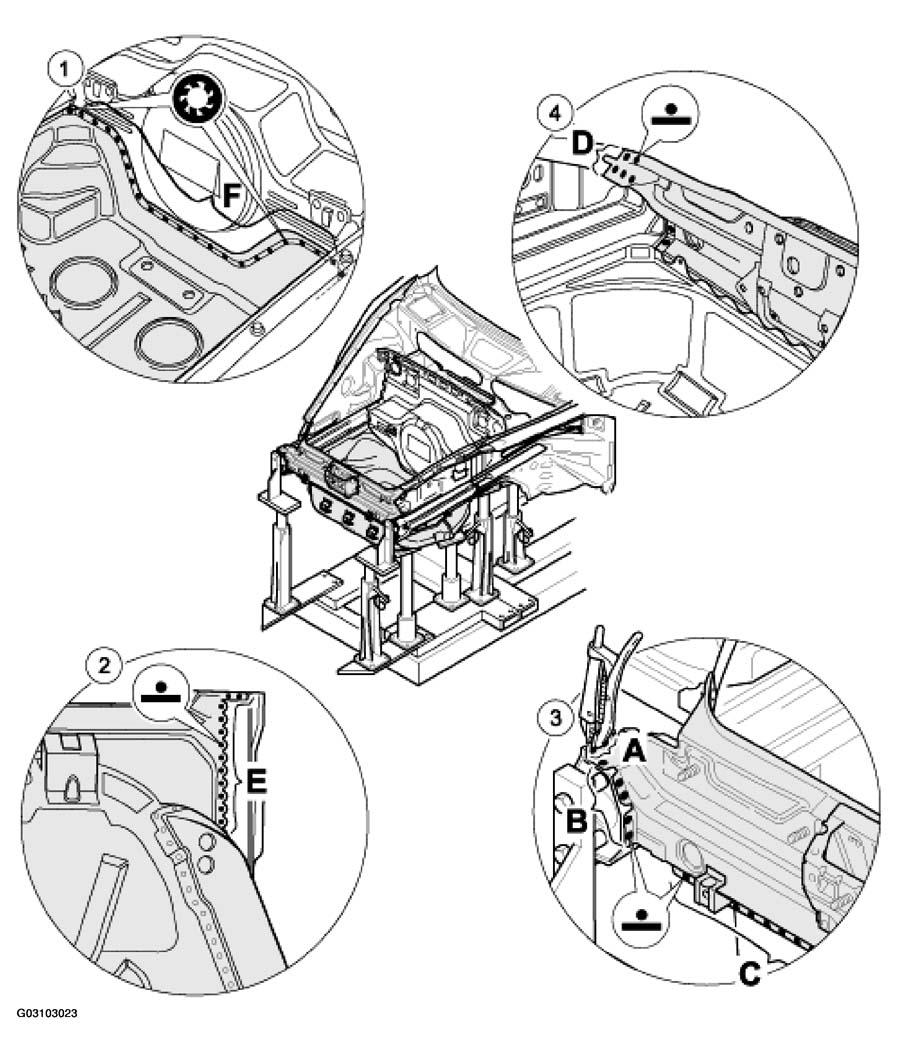

CLOSING PANEL AND FRONT FLOOR PANEL WELDING PROCEDURE AND INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Plug-welding front floor panel to the bulkhead under shielding gas | Plug-weld the front floor panel to the bulkhead -F- |
| 2 | Plug-welding the front floor panel to the side members under shielding gas | Align the front floor panel with the side members on the left and right -E- |
| 3 | Spot-welding the closing panel | Spot-weld the closing panel to the front floor panel -C--A, B- |
| 4 | Spot-welding the closing panel to the front floor panel | Spot-weld the closing panels with to wheel housings on the left and right -D- |
