Cleaning water drains on Coupe and Cabriolet
CAUTION:
Material damage due to water leakage!
- Water drainage hoses can be pushed out or pressed in when blown out of the body
- The water drains should be blown out carefully with compressed air.

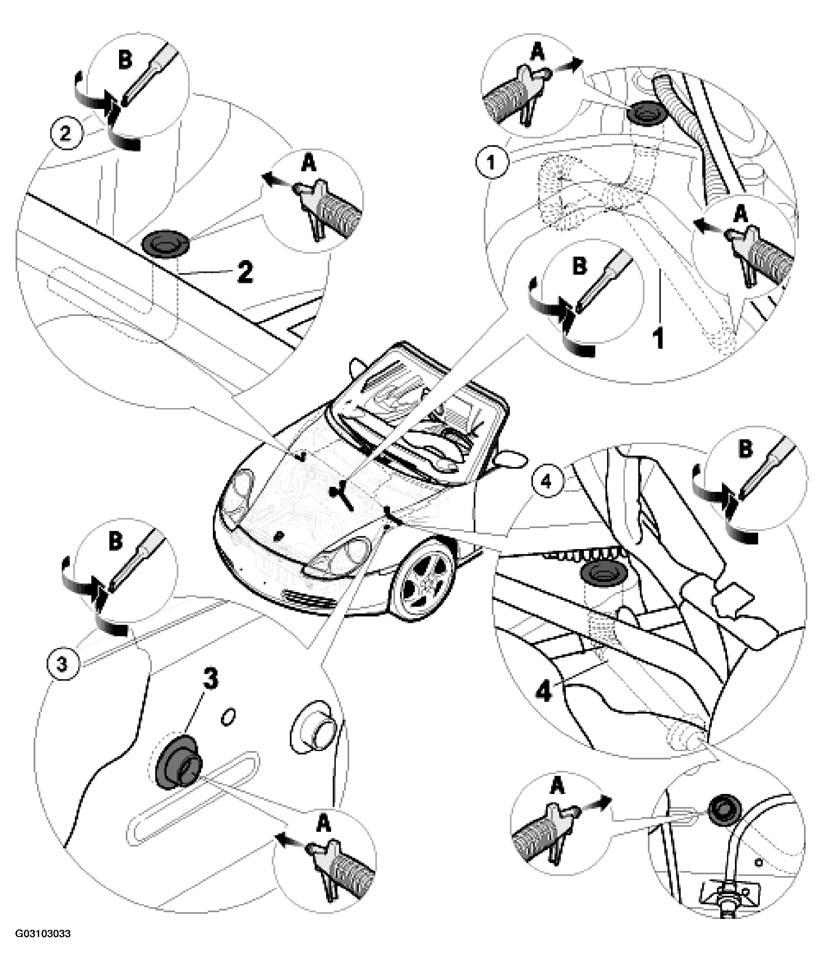

FRONT WATER DRAINS CLEANING PROCEDURE AND INSTRUCTIONS - COUPE AND CABRIOLET
| No. | Procedure | Instructions |
|---|---|---|
| Removing cowl panel cover | Refer to REMOVING AND INSTALLING COWL PANEL COVER TARGA | |
| 1 | Blow out water drains on right side of front end | Carefully blow out water drain -1-inset A-, -inset B- |
| 2 | Blow out water drains on right side of front end | Carefully blow out water drain -2-inset A-, -inset B- |
| 3 | Blow out water drains on left side of front end. | Raise vehicle on lifting platform and carefully blowout the left water drain -3-, -inset B- |
| 4 | Blow out water drains on left side of front end. | Raise vehicle on lifting platform and carefully blow out the left water drain -4-, -inset A-, -inset B- |
| Installing cowl panel cover | Refer to REMOVING AND INSTALLING COWL PANEL COVER TARGA |
