Removing and installing signal converter/immobilizer: Removal

  1. Disconnect the battery and cover terminal or battery.
  2. Remove left side vent (see REMOVING AND INSTALLING MAIN LIGHT SWITCH ).
  3. The signal converter on the ignition steering lock housing can be removed through the opening in the dashboard.
  4. Open the locking button with a (short) cross-head screwdriver (1/4 turn counter-clockwise). Pull the signal converter out of the holder to the rear.

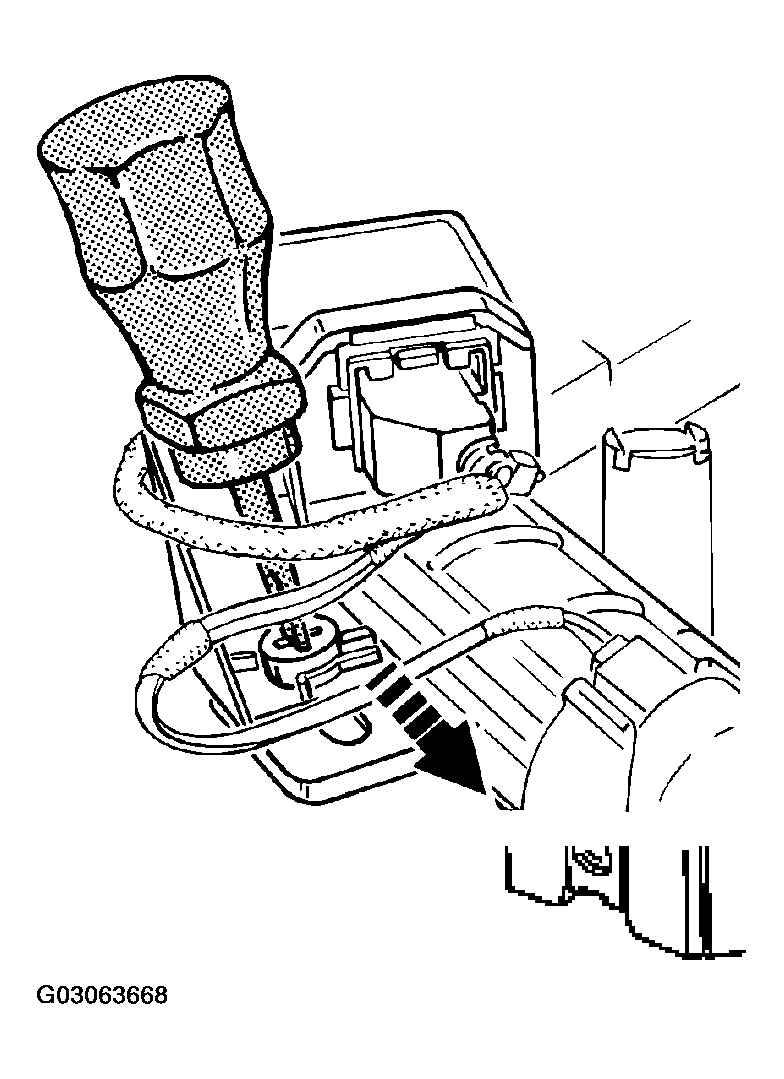

    Fig 1: Opening Locking Button With Screwdriver
    G03063668Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Fig 1 shows the signal converter without dashboard.

  5. Unlock the electrical plug connection from above and disconnect. Remove signal converter housing out of the side vent opening.

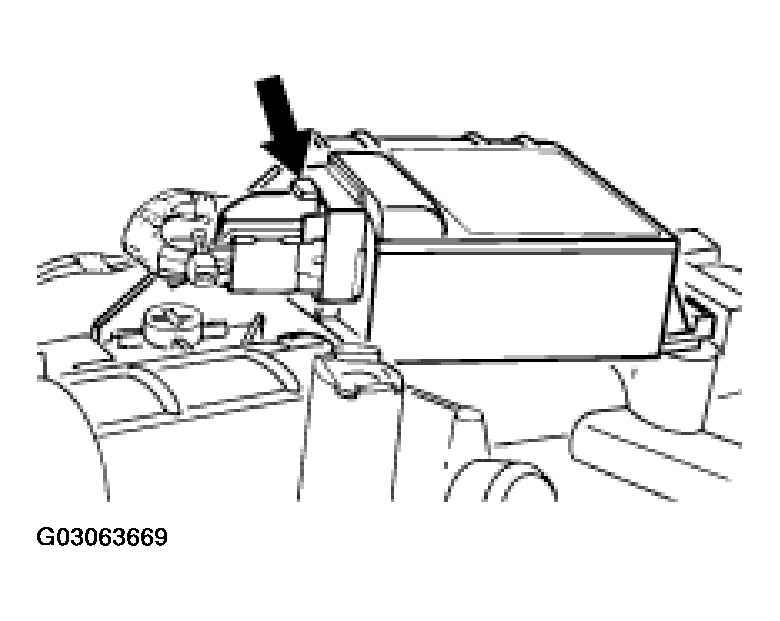

    Fig 2: Unlocking Electrical Plug Connection
    G03063669Courtesy of PORSCHE OF NORTH AMERICA, INC.
