Removing and installing passenger compartment monitoring sensor: Removal

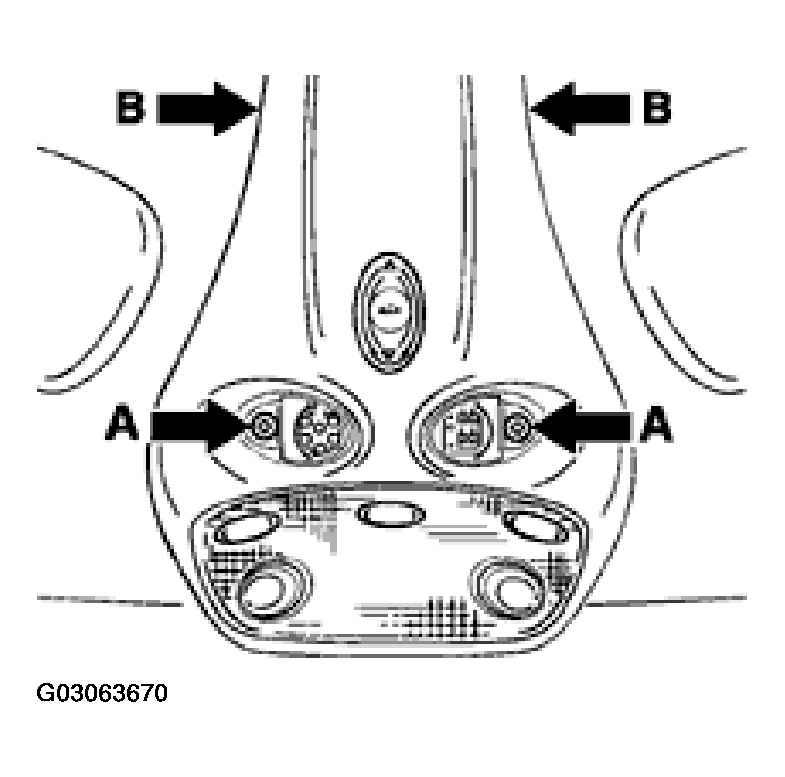

- Using a small screwdriver, carefully unclip both cover lenses at the openings provided. Undo fastening screws M 5 with a cross-head screwdriver (arrow A).
- Unclip sensor holder at the rear left and right (arrow B), push forward towards the windshield and remove. Pull off electrical plug connection.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Unclip passenger compartment monitoring sensor at the side and remove from the sensor holder.
