Removing and installing bulb for luggage compartment light: Removal

  1. Carefully push the luggage compartment light out of the trim panel using a screwdriver (arrow).

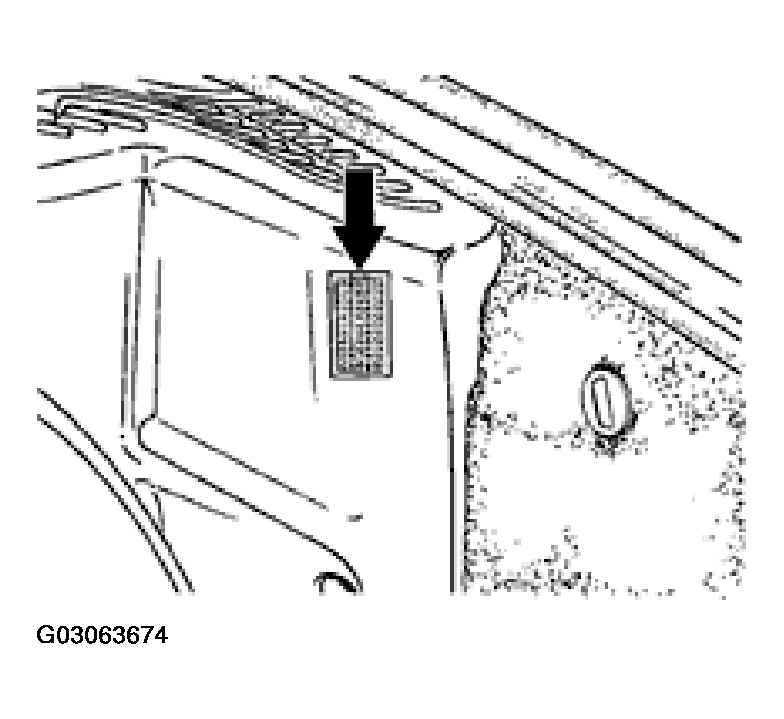

    Fig 1: Pushing Out Luggage Compartment Light
    G03063674Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove the faulty bulb from between the contact springs.
