Removing and installing bulb for interior light: Removal

  1. Carefully pull the interior light out of the trim panel from the front (arrow).

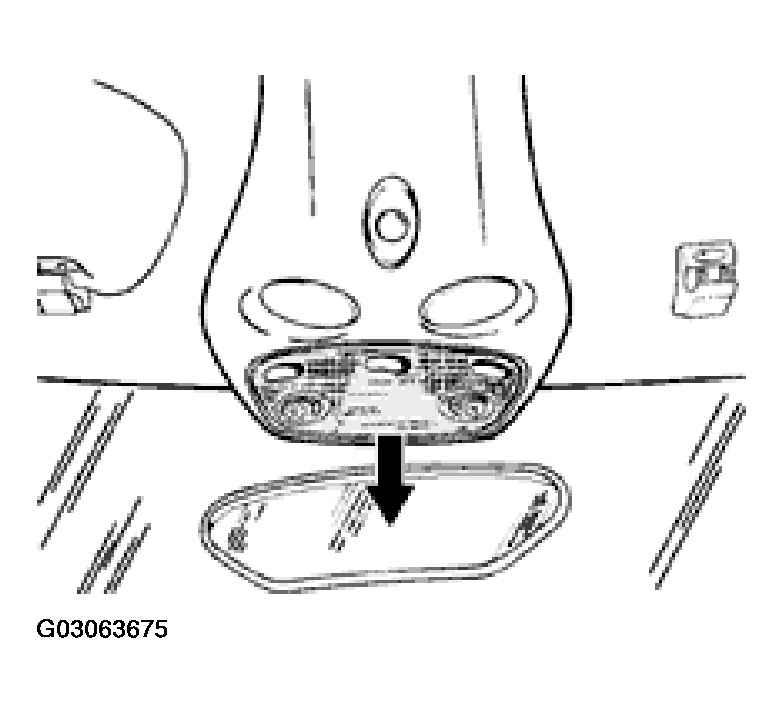

    Fig 1: Pulling Interior Light Out Of Trim Panel From Front
    G03063675Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove bulb of reading light. Undo the bulb holder (bayonet lock) and pull out the faulty bulb.
  3. Remove interior light. Carefully unclip the lens on the side of the switch (arrow) and remove.

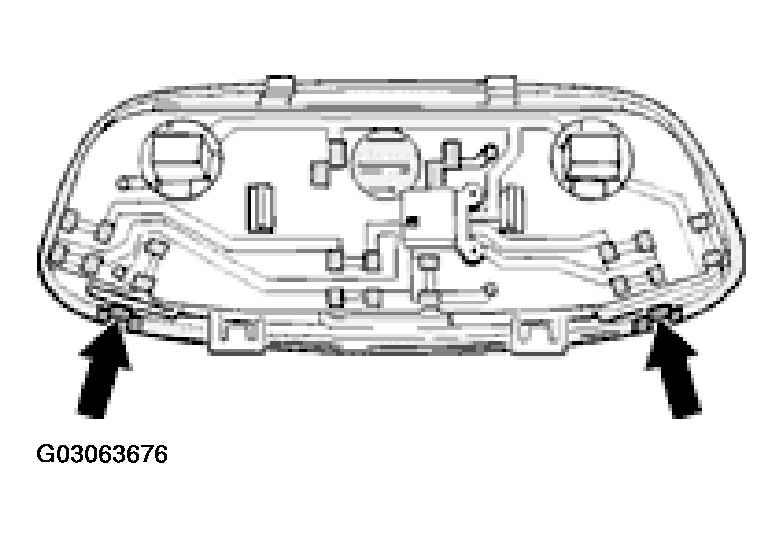

    Fig 2: Removing Interior Light Bulb
    G03063676Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Remove the faulty bulb from between the contact springs.
