Removing and installing bulb for instrument cluster: Removal

NOTE: 1.2 and 1.5 watt bulbs can be removed and installed without opening the rear side of the instrument cluster.

1. Removing and installing instrument cluster: Refer to REMOVING AND INSTALLING INSTRUMENT CLUSTER .
2. Undo the bulb holder with a small screwdriver (bayonet lock).

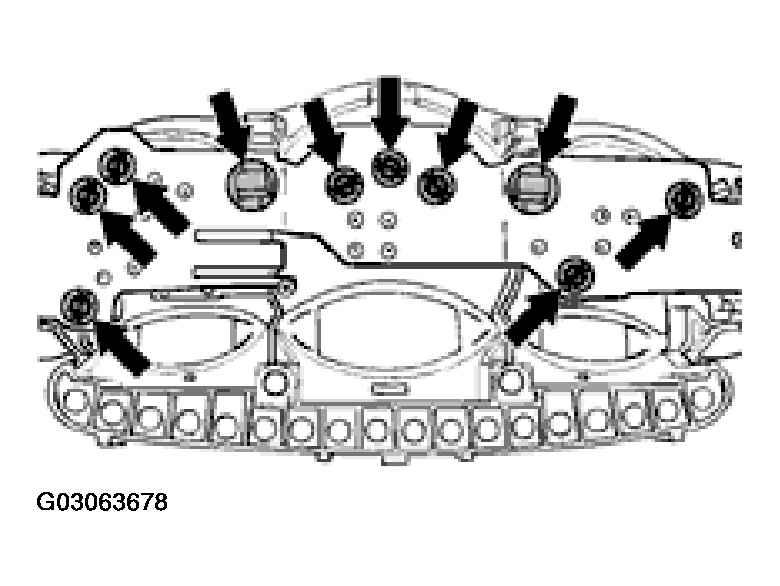

   Fig 1: Identifying Instrument Cluster Bulb Holder

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
3. Take out the faulty bulb. The bulb and bulb holder make up one spare part.

NOTE: If the instrument cluster is open, interior 1.5 and 3 watt bulbs can be removed from and installed in the display unit in the same order of procedure. Disassembling and assembling instrument cluster: Refer to DISASSEMBLING AND ASSEMBLING INSTRUMENT CLUSTER .

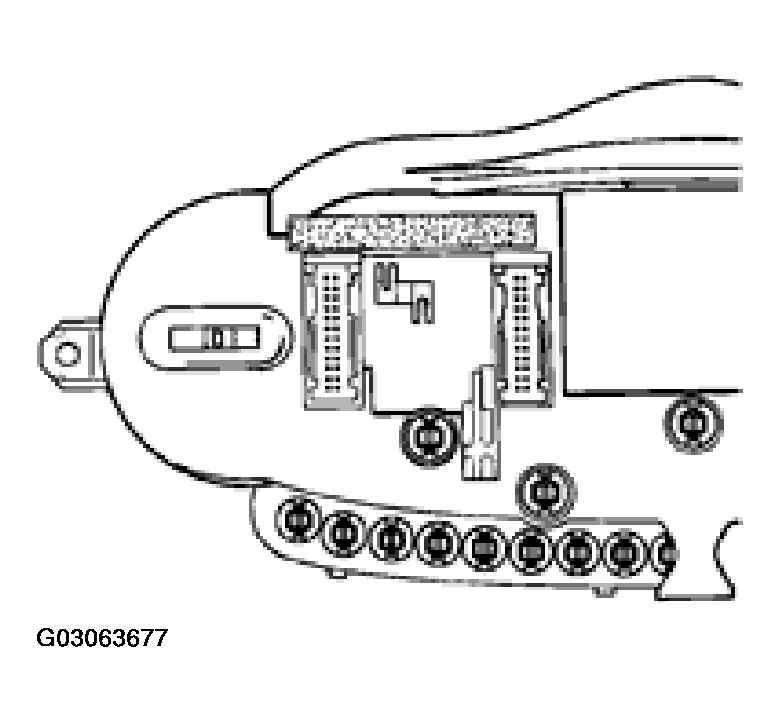

Fig 2: Identifying Instrument Cluster Bulbs
