Removing and installing bulb for engine compartment light: Removal

  1. Carefully push the engine compartment light out of the fan cover using a screwdriver (arrow).

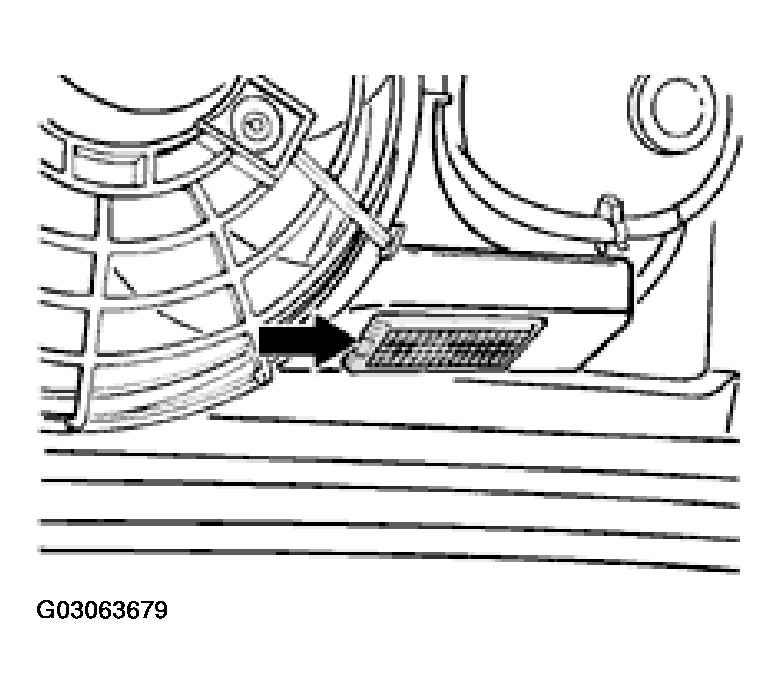

    Fig 1: Locating Engine Compartment Light
    G03063679Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove the faulty bulb from between the contact springs.
