Removing key from the bottom part

  1. In order to remove the key from the bottom part, the compression spring in the sliding latch is compressed and held with a small screwdriver.
  2. Lift out the cap and relieve the compression spring.

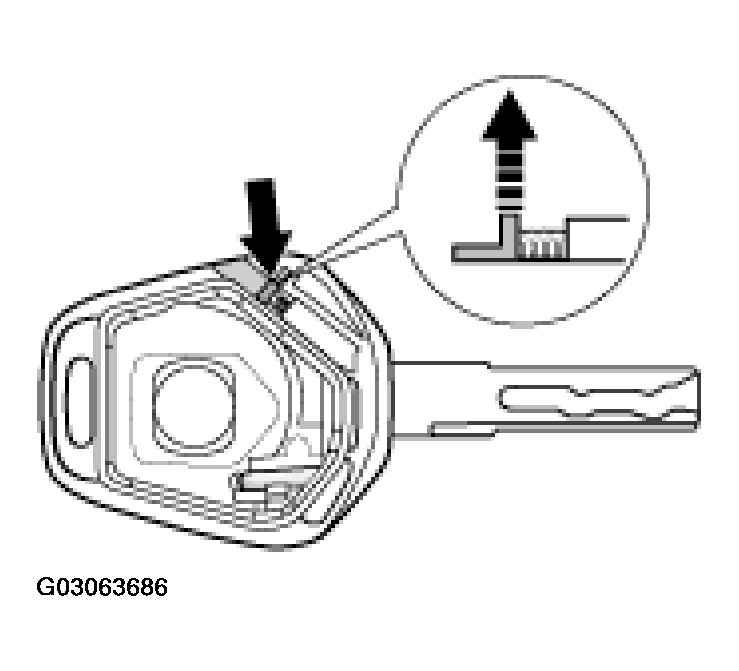

    Fig 1: Removing Key From Bottom Part
    G03063686Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Push the sliding latch back and pull the key out of the bottom part.
