Removing and installing actuating element for lid release

  1. Remove handle liner.
  2. Remove bracket with actuating elements.
  3. Unscrewing fastening screws.

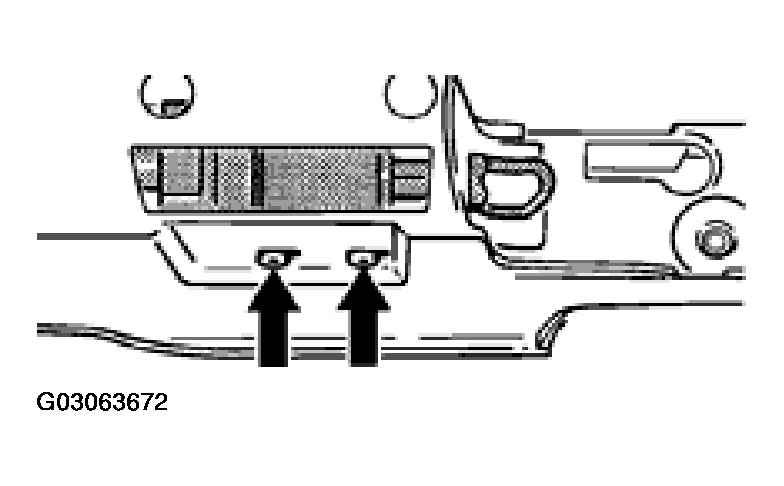

    Fig 1: Removing/Installing Actuating Element For Lid Release Screws
    G03063672Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: Electrical locking of the rear lid release has been omitted on vehicles manufactured after March `99. Front lid release locking is still carried out electrically.

Electric locking is carried out by the alarm system control module and is valid for the following country codings: USA, England and Belgium
