Disassembling and assembling instrument cluster: Notes

NOTE: The instrument cluster can be disassembled in three component groups.

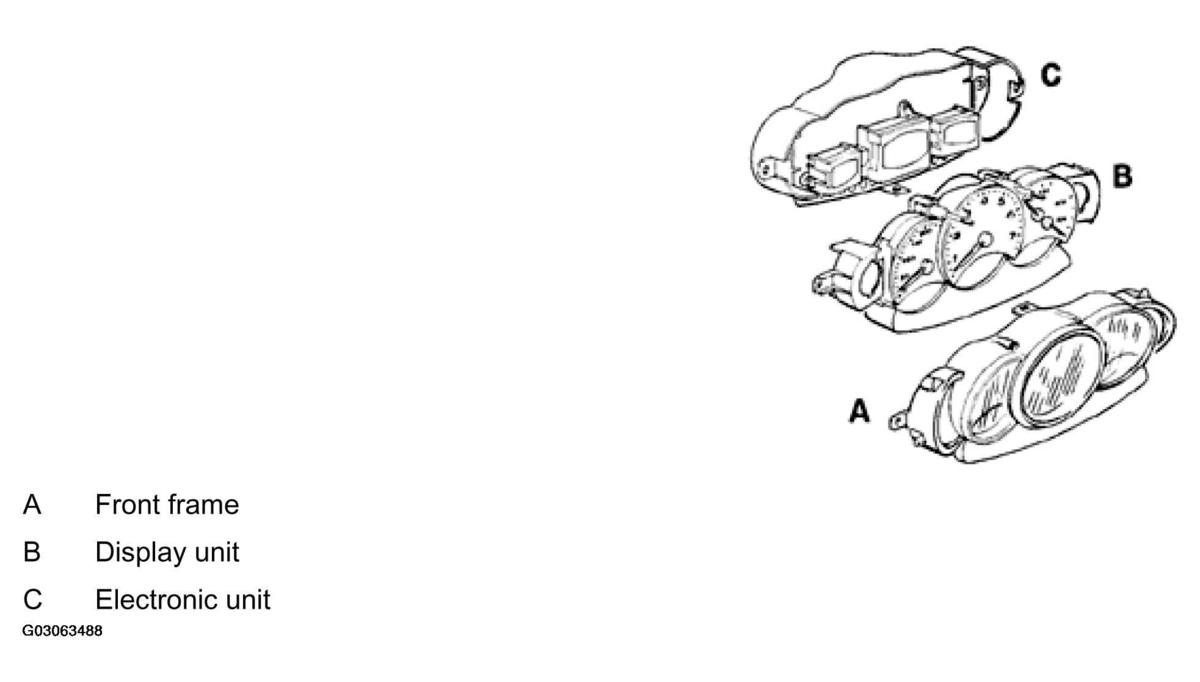

Fig 1: Disassembling And Assembling Instrument Cluster

Courtesy of PORSCHE OF NORTH AMERICA, INC.

To open the instrument cluster, place it on a soft, dust-free surface. When the instrument cluster is open, take care not to touch or damage any dials or solder joints of the display unit and electronic PCB.
