Installing the loudspeaker amplifier

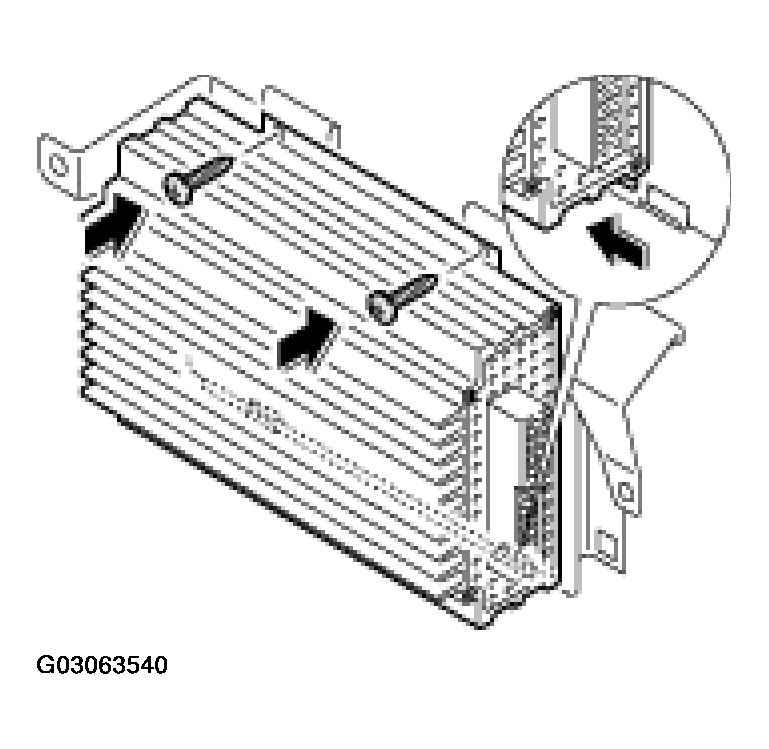

Insert the amplifier in the retaining clip and secure with the two fastening screws.

Fig 1: Inserting Amplifier In Retaining Clip & Installing Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert both connectors until they perceptibly engage.

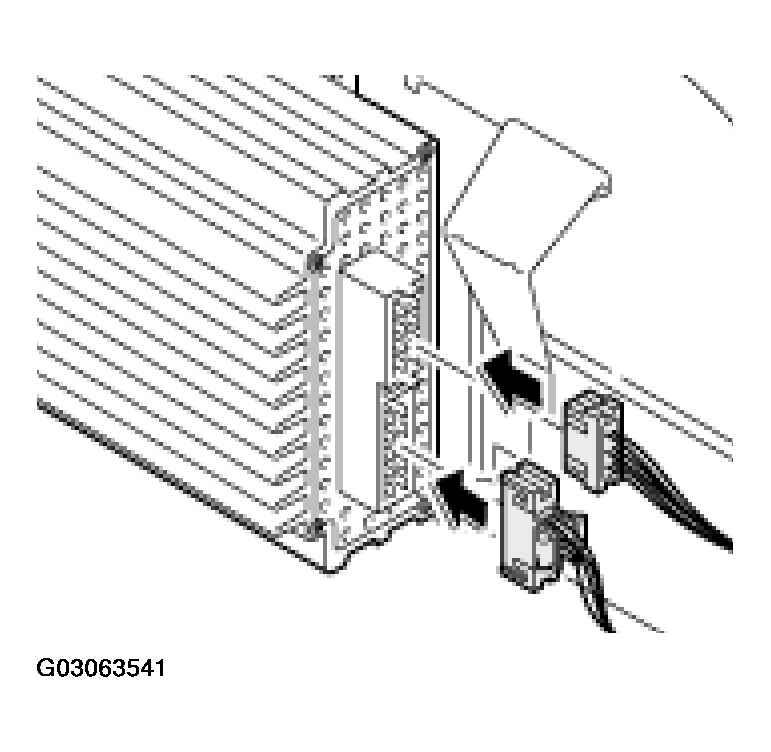

Bose amplifier:

Fig 2: Installing Bose Amplifier Electrical Connectors
Courtesy of PORSCHE OF NORTH AMERICA, INC.

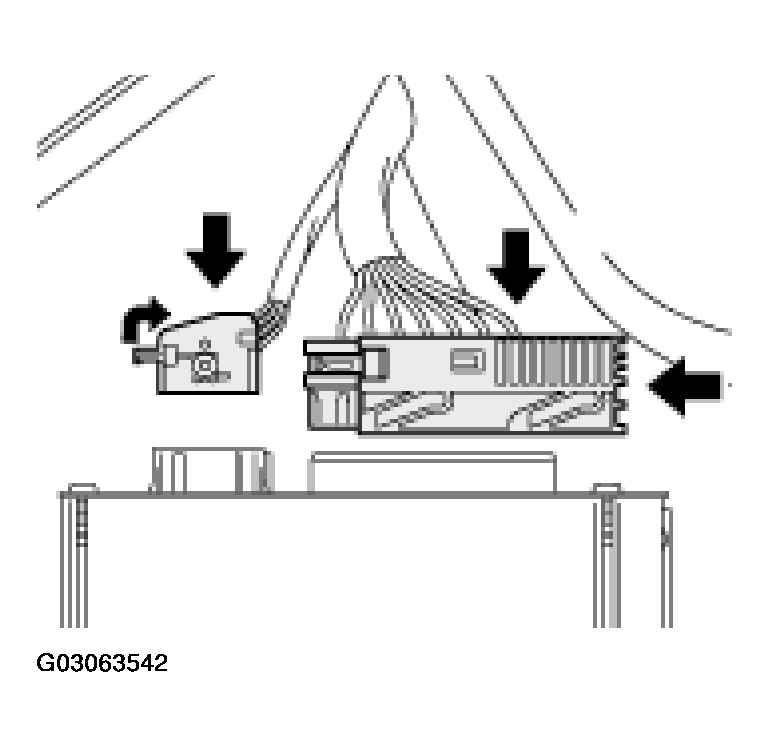

Harman amplifier:

Fig 3: Installing Harman Amplifier Electrical Connectors
Courtesy of PORSCHE OF NORTH AMERICA, INC.

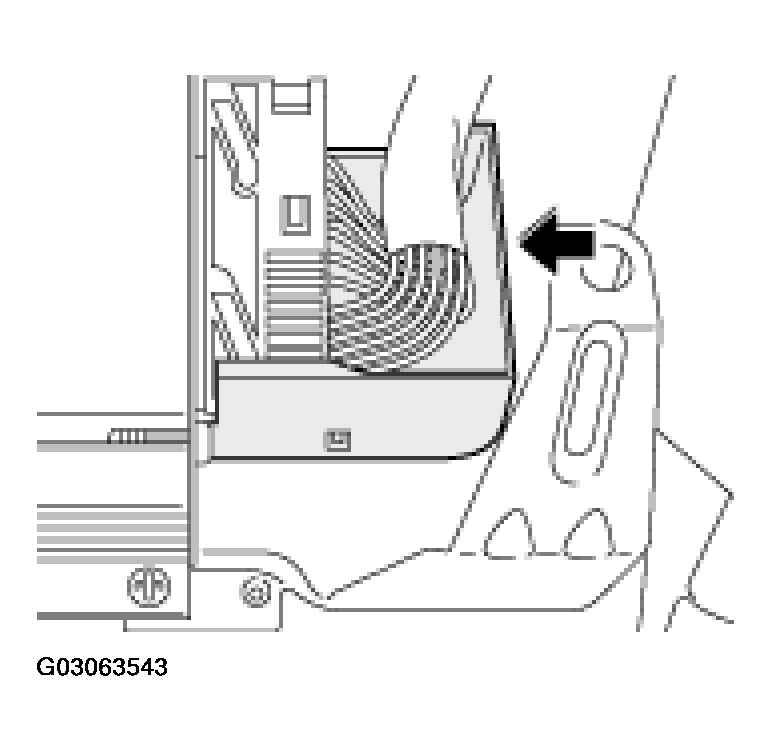

Put on the cover on the Harman amplifier.

Fig 4: Installing Cover On Harman Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.

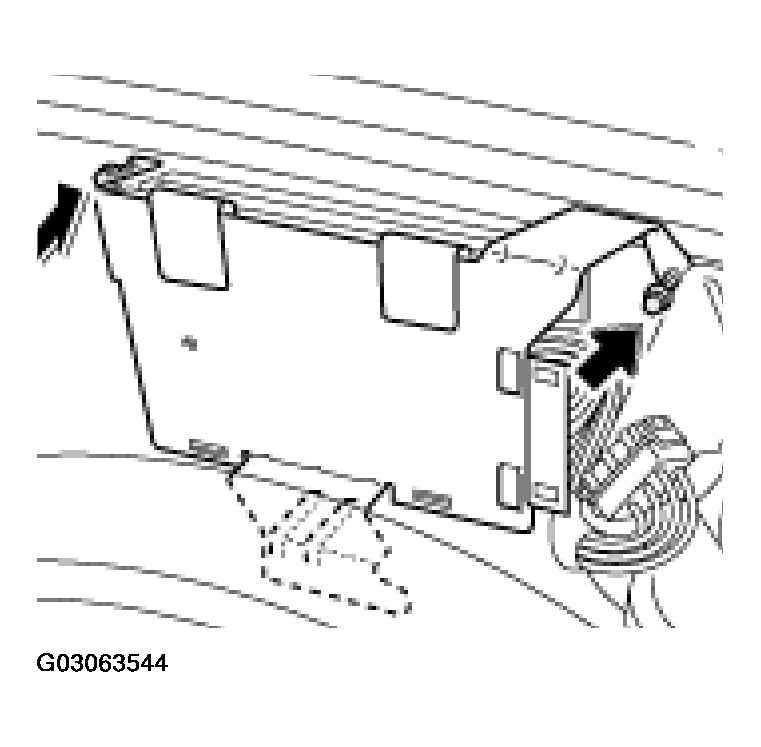

Screw on the retaining bracket with the amplifier and both fastening screws to the body.

Fig 5: Screwing Retaining Bracket With Amplifier & Fastening Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.

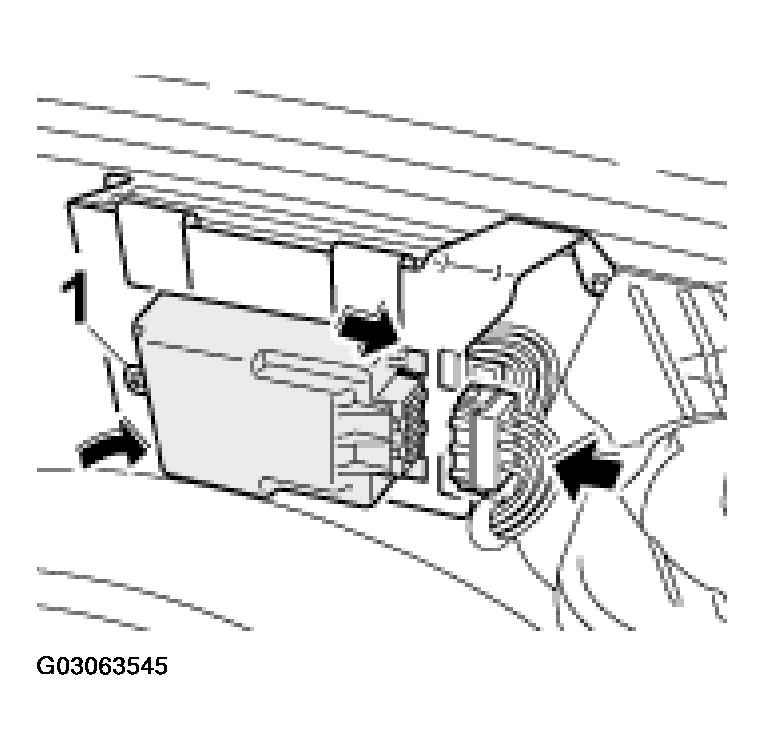

Plug in the connector of the additional amplifier and attach the additional amplifier on the retaining bracket and secure using the clip -1- .

Fig 6: Connecting Connector Of The Additional Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.
