ParkAssistent control module

NOTE: The control module is fastened next to the alarm system/central locking system control module under the driver's seat. When removing, remove the seat and detach the retaining plate (two hexagon-head screws M6 x 16).

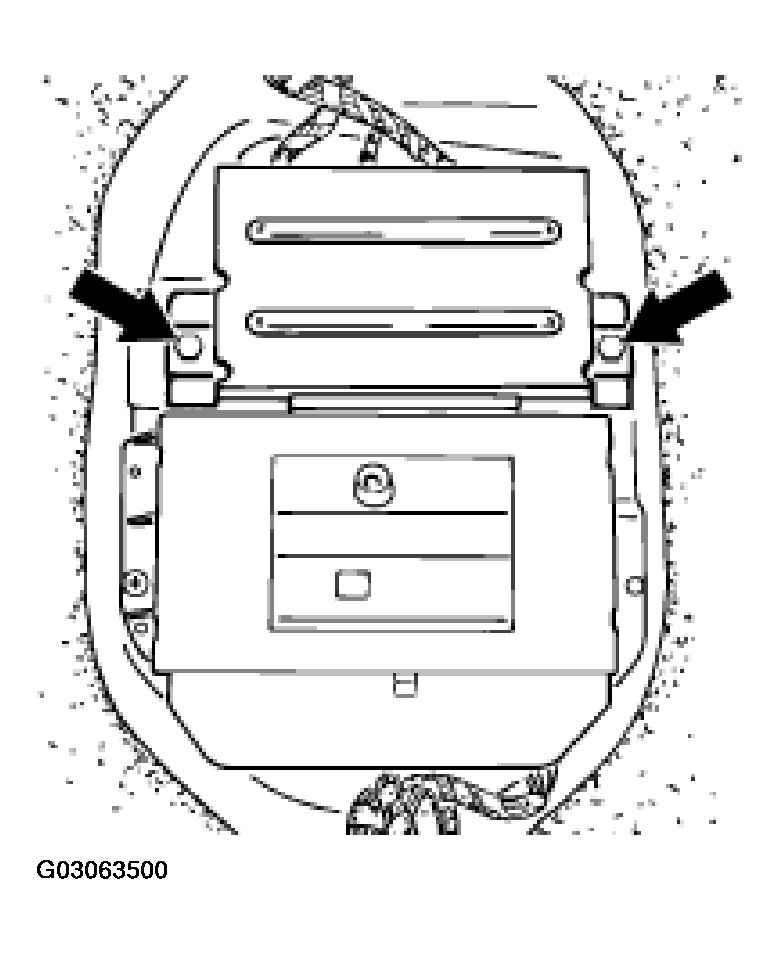

Fig 1: Identifying Park Assistant Control Module & Screws
G03063500Courtesy of PORSCHE OF NORTH AMERICA, INC.
