Removing and installing sensor for ParkAssistent: Notes

NOTE:

Four sensors for the ParkAssistent are installed in the rear spoiler. The rear spoiler must be taken off in order to remove a defective sensor. The sensors are arranged in the order: outer left, inner left, inner right and outer right.

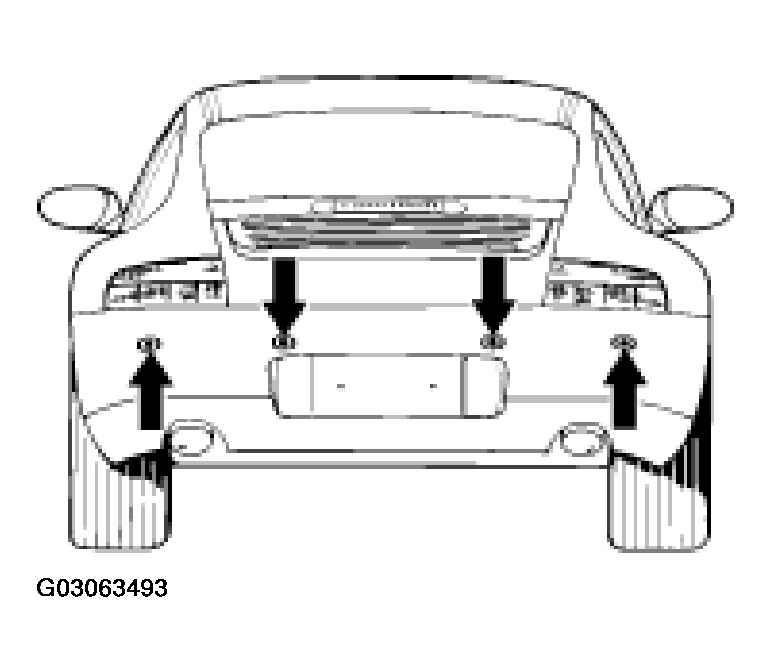

Fig 1: Identifying Park Assistant Sensors In Rear Spoiler

Courtesy of PORSCHE OF NORTH AMERICA, INC.

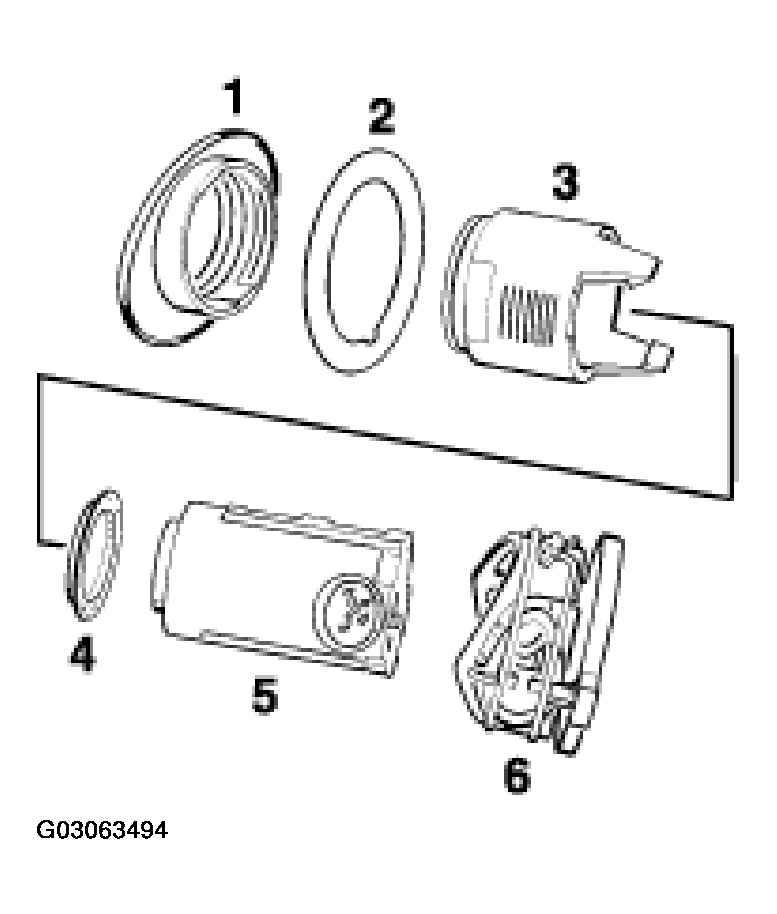

The sensor with holder in the rear spoiler consists of six parts.

Fig 2: Identifying Components Of Rear Spoiler Sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.
