Removing display and operator control unit (PCM)

  1. Unclip the -switch covers-  from below and let them dangle from the electric leads.

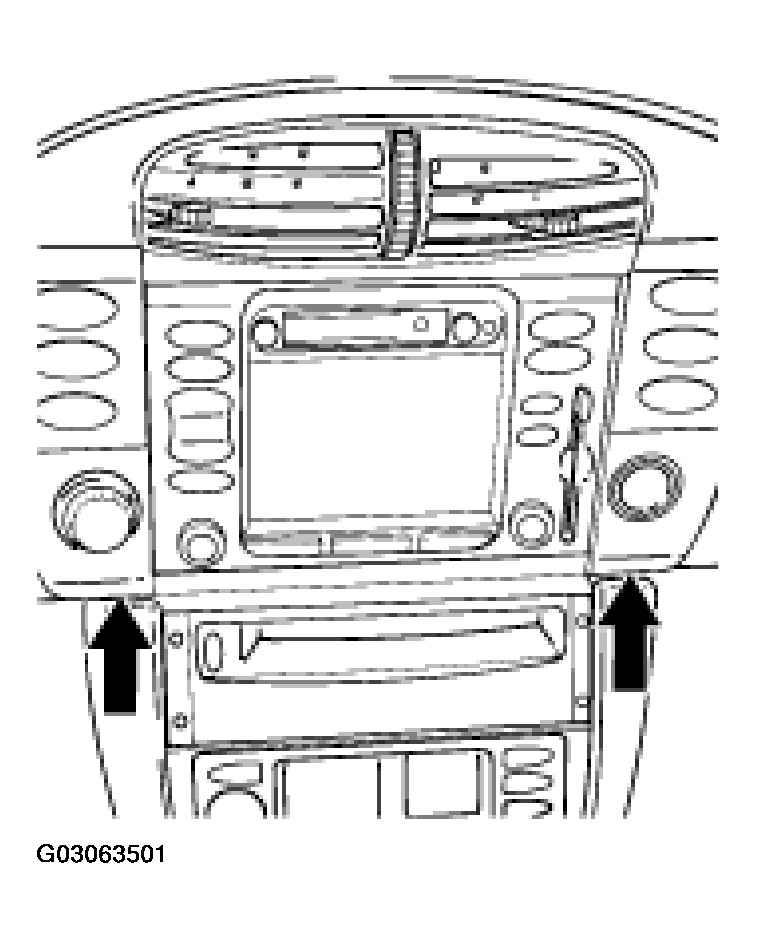

    Fig 1: Unclipping Switch Covers
    G03063501Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Press together both spring clamps on the display and operator control unit and carefully pull out.

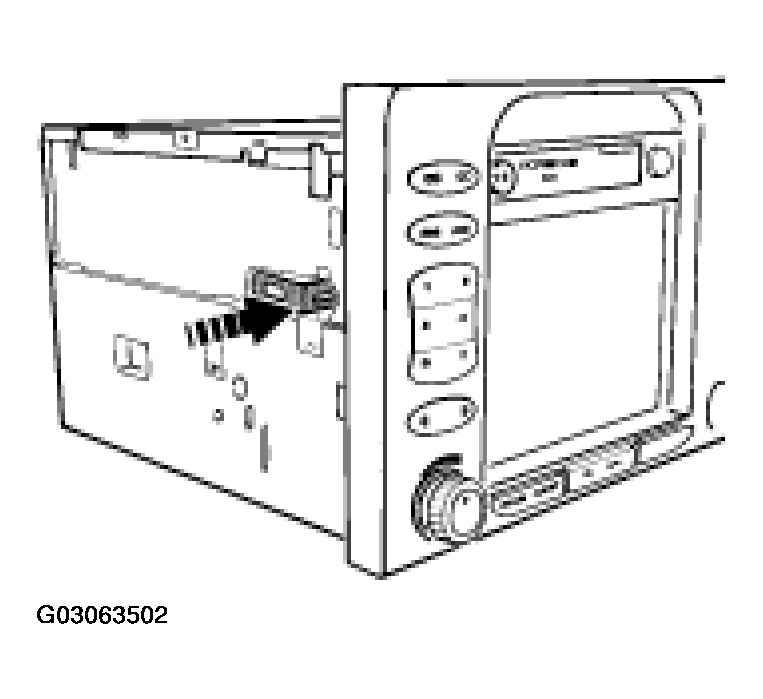

    Fig 2: Pressing Together Spring Clamps On Display
    G03063502Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disconnect electrical plug connections from the display and operator control unit.
