Installing the control module for the antenna

Connect the electrical connectors in turn.

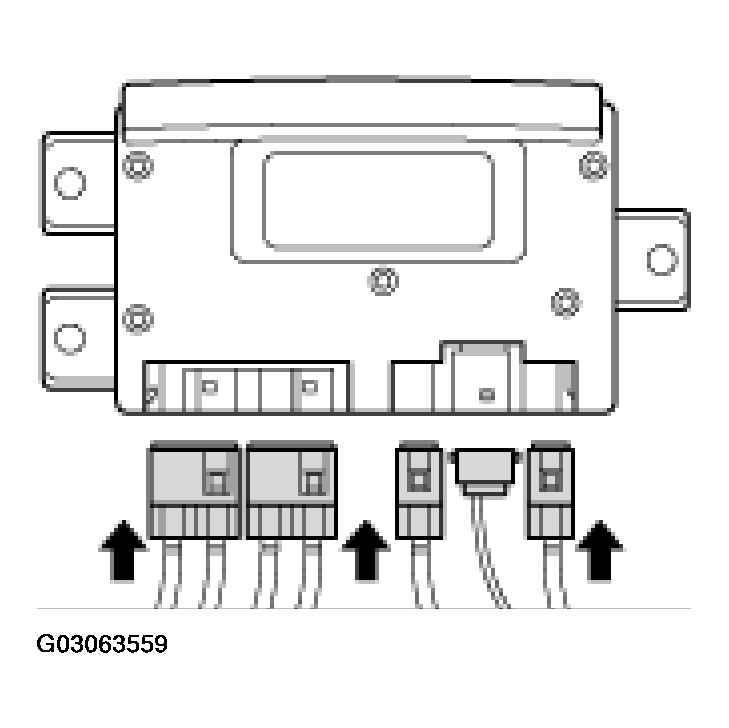

Fig 1: Connecting Control Unit For Antenna Electrical Connectors (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push the control unit carefully over the interior carpet -B- and position it in the holder -A- .

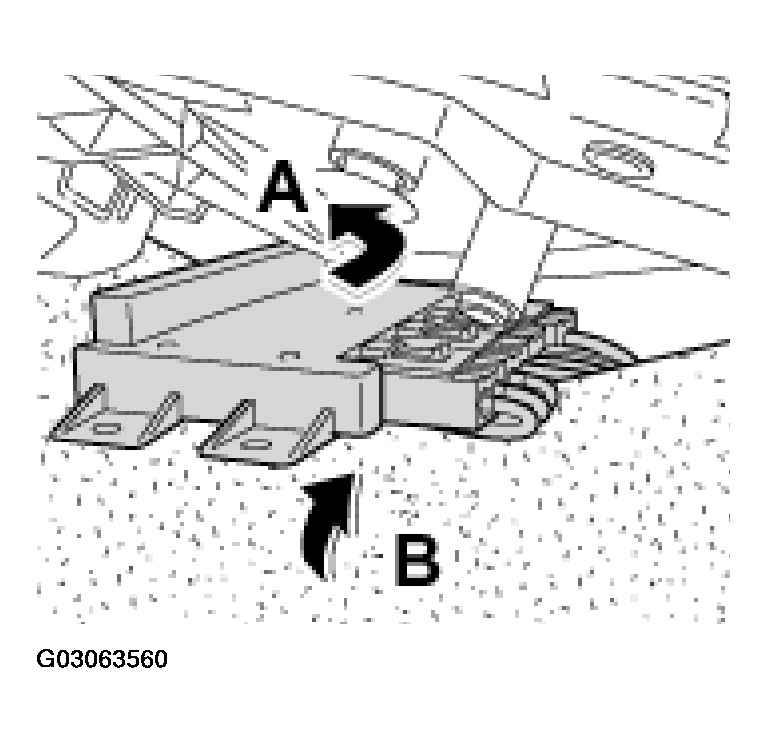

Fig 2: Positioning Control Unit For Antenna On Holder (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fasten the control unit with the clip to the holder.

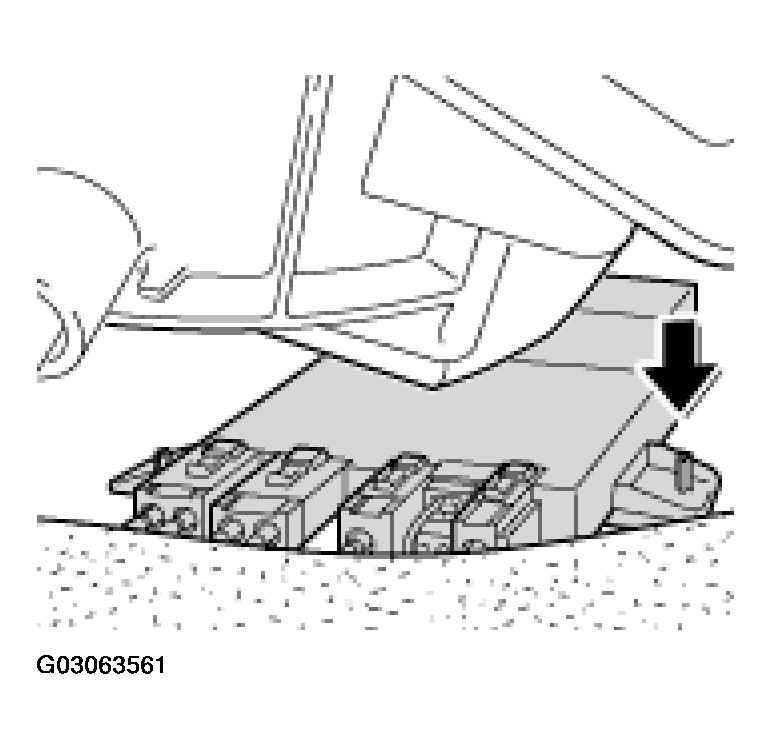

Fig 3: Fastening Control Unit For Antenna With Clip To Holder (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Install the right trim under the instrument panel. Refer to REMOVING AND INSTALLING COWL PANEL COVER .
