Installing control module for parking assistant

1. Insert both plugs into the control module until they engage.

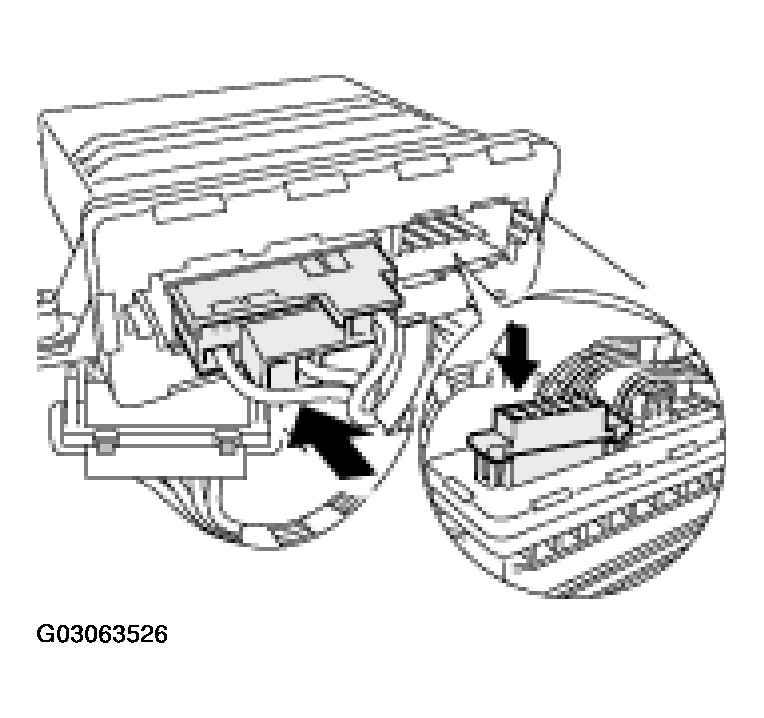

   Fig 1: Installing Plugs Into Control Module For Parking Assistant

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Fit the control module onto the cover with both fastening screws.
3. Position the cover and screw tight with the fastening screws -arrow-  .

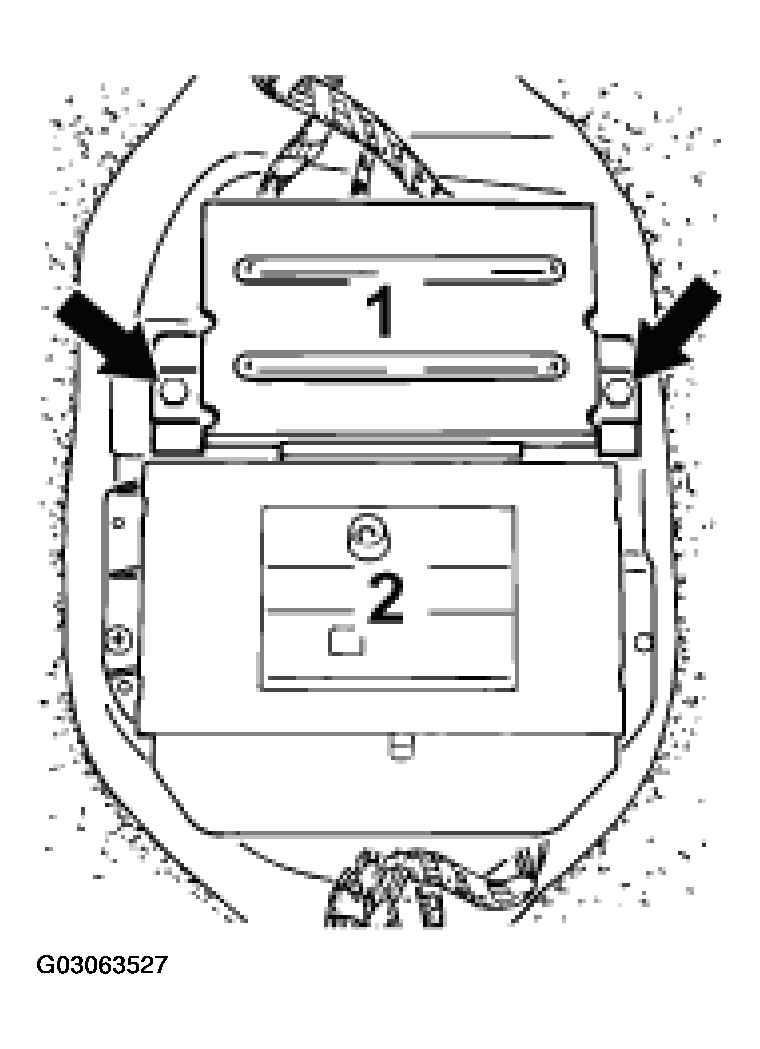

Fig 2: Positioning Cover & Installing Fastening Screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.
