Removing switch for seat adjustment

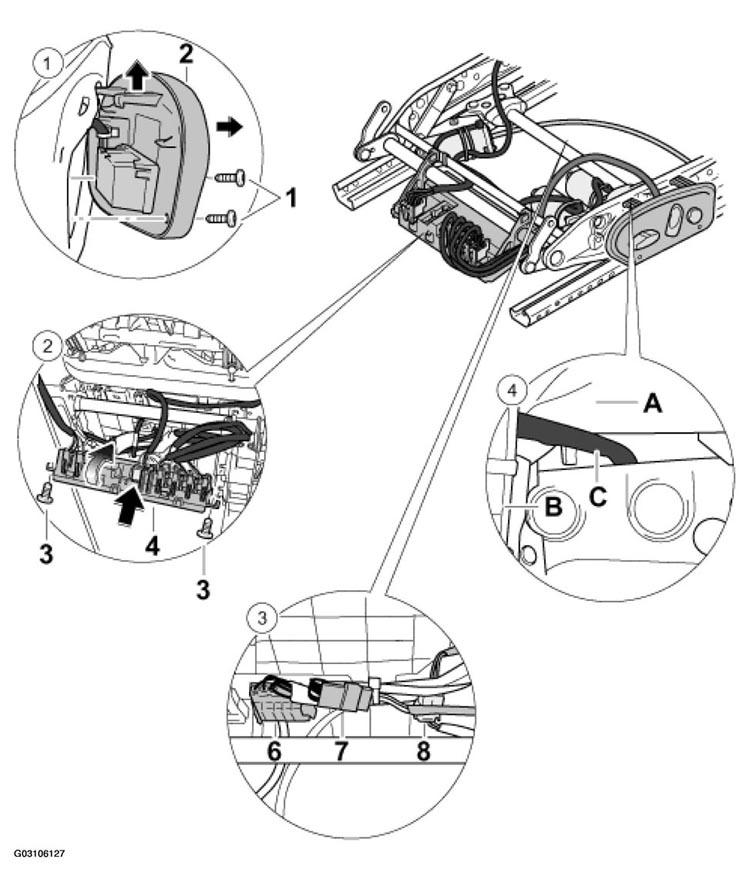

Fig 1: Removing Switch For Seat Adjustment

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SWITCH FOR SEAT ADJUSTMENT REMOVING PROCEDURE

No.	Procedure	Instructions
	Removing front seat.	See REMOVING AND INSTALLING FRONT SEAT .
1	Removing switch -2- . See Fig 1 .	Unscrew fastening screws -1-2-arrow- . See Fig 1 .
2	Control module -4- . See Fig 1 .	Undo fastening screws -3-4-arrow- . See Fig 1 .
3	Plug connection -6, 7, 8- . See Fig 1 .	Pull plugs below seat -6-7-8- . See Fig 1 .
4	Lead route between seat cushion and seat frame.	-A . See Fig 1 .
