Installing switch for seat adjustment

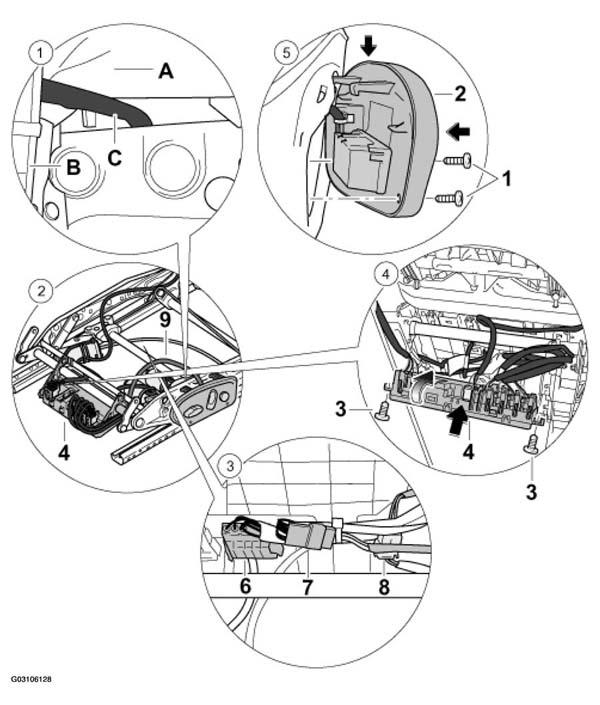

Fig 1: Installing Switch For Seat Adjustment

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SWITCH FOR SEAT ADJUSTMENT INSTALLING PROCEDURE

No.	Procedure	Instructions
1	Line -C-B- . See Fig 1 .	Push the plugs of line -C-A . See Fig 1 .
2	Line route -9- . See Fig 1 .	In connection with the seat memory control module, lay the line -9-4- . See Fig 1 .
3	Plug connection -6, 7, 8- . See Fig 1 .	Plug connection without control module for seat memory. Join plugs for -6-7-8- . See Fig 1 .
4	Plug connection -arrow-4- . See Fig 1 .	Clip plugs on to each other starting on the right, natural, blue, black and plug on to the control module -arrow-4-3- . See Fig 1 .
5	Installing switch -2- . See Fig 1 .	Insert the switch -in direction of arrow-1- . See Fig 1 .
	Installing front seat.	See REMOVING AND INSTALLING FRONT SEAT .
