Installing front cushion carrier

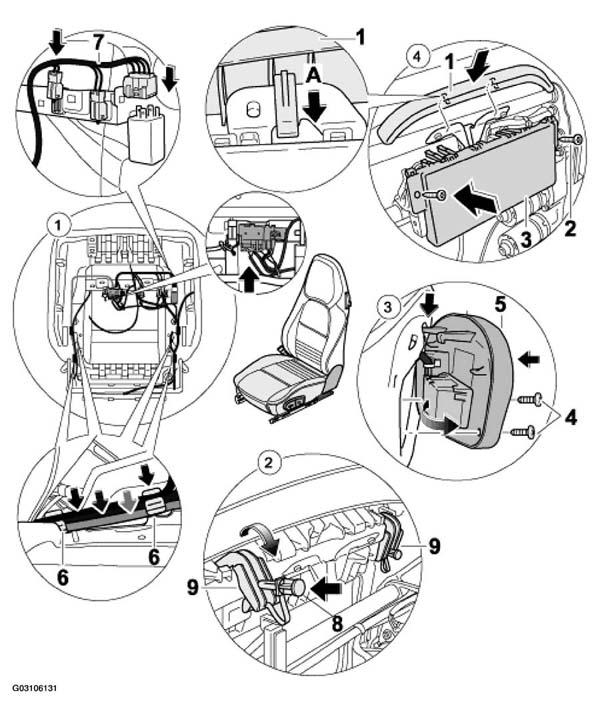

Fig 1: Installing Front Cushion Carrier (As Of MY 1996)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT CUSHION CARRIER INSTALLING PROCEDURE (AS OF MY 1996)

No.	Procedure	Instructions
1	Installing wiring harness	Plug in electrical plug connection of the seat heating -7-direction of arrow-6- . See Fig 1 .
2	Installing seat cushions on to seat frame	Position the seat cushion on to the seat frame and clip the plastic clip -9-8- . See Fig 1 .
3	Installing switch for seat adjustment	Pull switch for seat adjustment -5-4- . See Fig 1 .
4	Installing control module and cover	Position control module -3-2-1-direction of arrow A- . See Fig 1 .
