Tightening torques
BACKREST FRAME TIGHTENING TORQUES
| Location |
Illustration |
Thread |
Tightening torque [Nm] (ftlb.) |

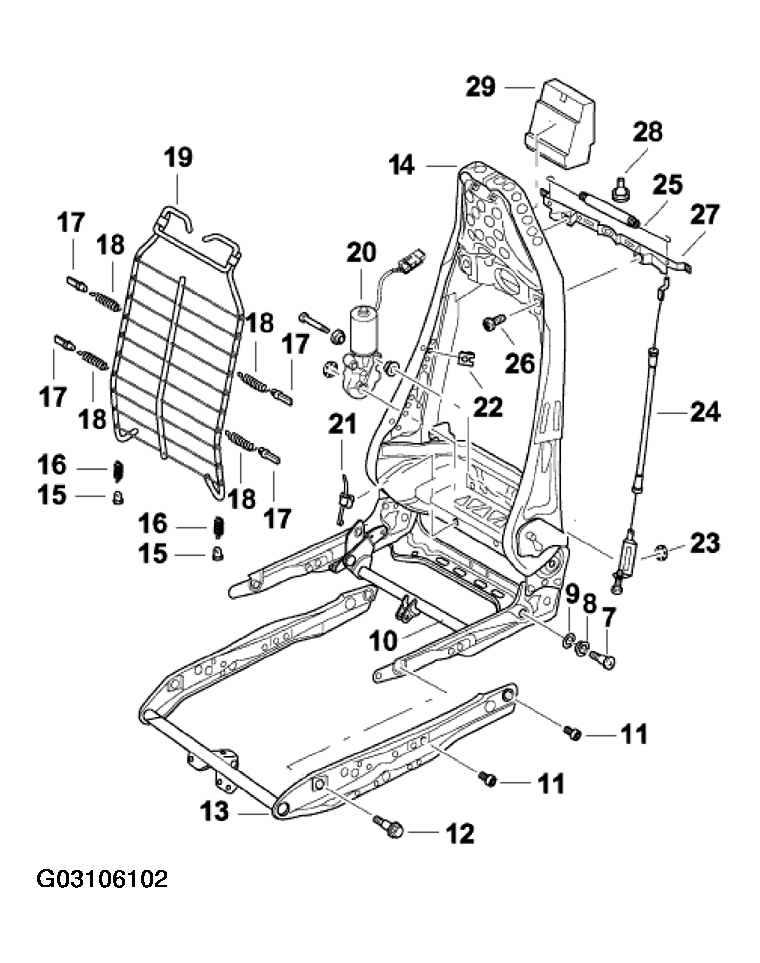

| Cross tube fastening screw to seat frame |
-7-
. See Figure
. |
M8 |
23 (17) |
| Seat frame fastening screw to backrest frame |
-11, 12-
. See Figure
. |
M8 |
23 (17) |
