Removing and installing the instrument panel and instrument panel bracket
>>
Tools and materials
>>
Cutting with adhesive pad
Cutting with adhesive pad
X 50 mm. Refer to
Fig 1
.
Y 40 mm
Z 25 mm
- Punch out the crack
-Z-
at a diameter of 7 mm. Refer to
Fig 1
.

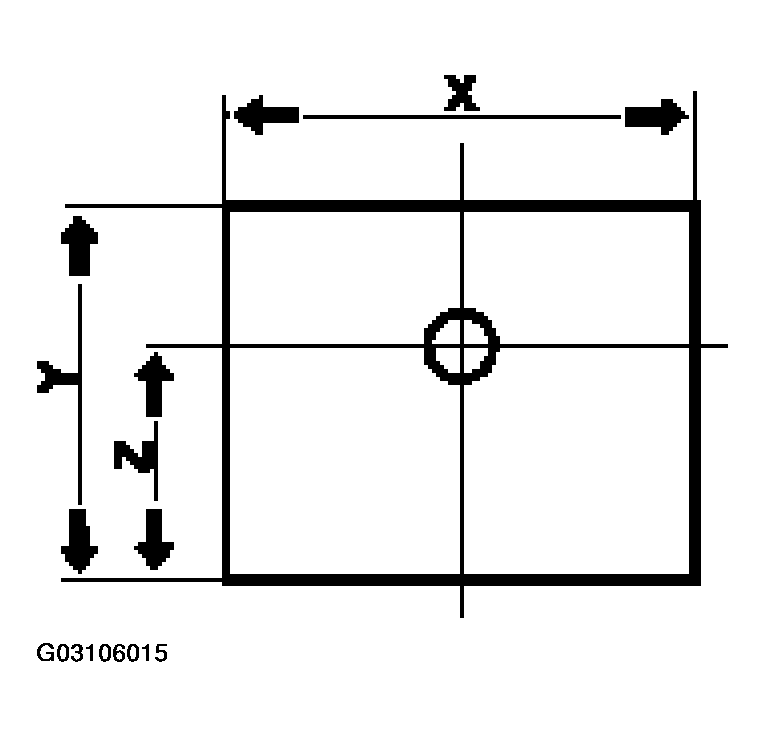

Fig 1: Adhesive Pad Dimensions
Courtesy of PORSCHE OF NORTH AMERICA, INC.
