Removing and installing the instrument panel
NOTE:
- Before removing the instrument panel, it must be disassembled. See DISASSEMBLING THE DASHBOARD .

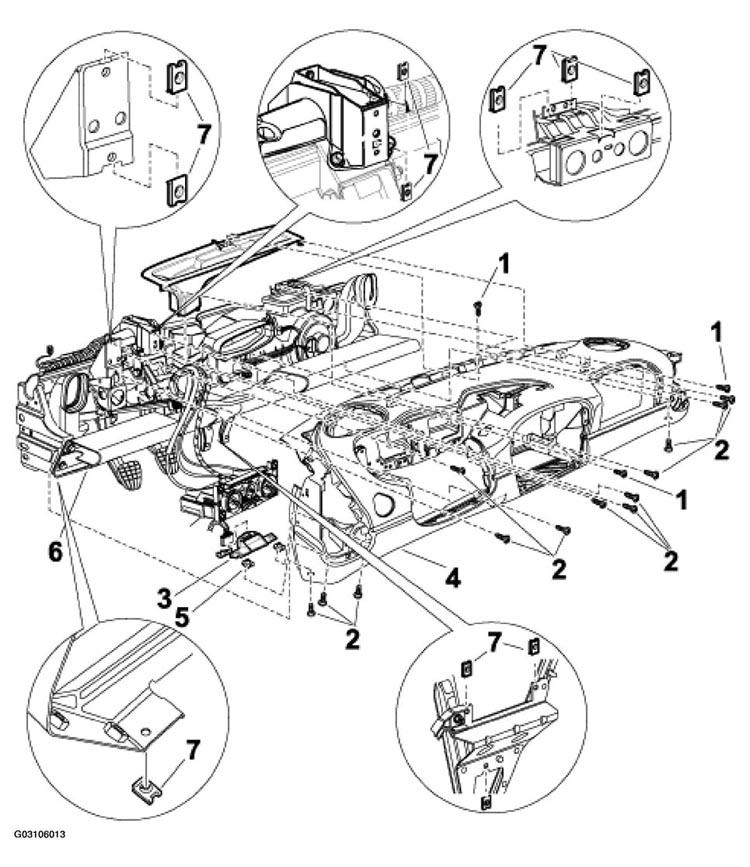

INSTRUMENT PANEL REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening screws | 3 | Unscrew fastening screws -1-4- . See Fig 1 . | Screw the instrument panel -4-1- . See Fig 1 . |
| 2 | Fastening screws | 13 | Undo fastening screws-2-4- . See Fig 1 . | Screw the instrument panel -4-2- . See Fig 1 . |
| 3 | On-Board Diagnosis (OBD) socket | 1 | Unscrew the fastening screws -2- . See Fig 1 . | Tighten the fastening screws -2- . See Fig 1 . |
| 4 | Instrument panel | 1 | See: Position -1 and 2- . See Fig 1 . | See: Position -1 and 2- . See Fig 1 . |
| 5 | Sheetmetal nut | 2 | Unscrew the fastening screws -2- . See Fig 1 . | Inspect and replace if necessary. |
| 6 | Instrument panel bracket with knee protector strip | 1 | ||
| 7 | Sheetmetal nut | 11 | Unscrew fastening screws -1 and 2-4- . See Fig 1 . | Inspect and replace if necessary. |
