Installing side-panel lining

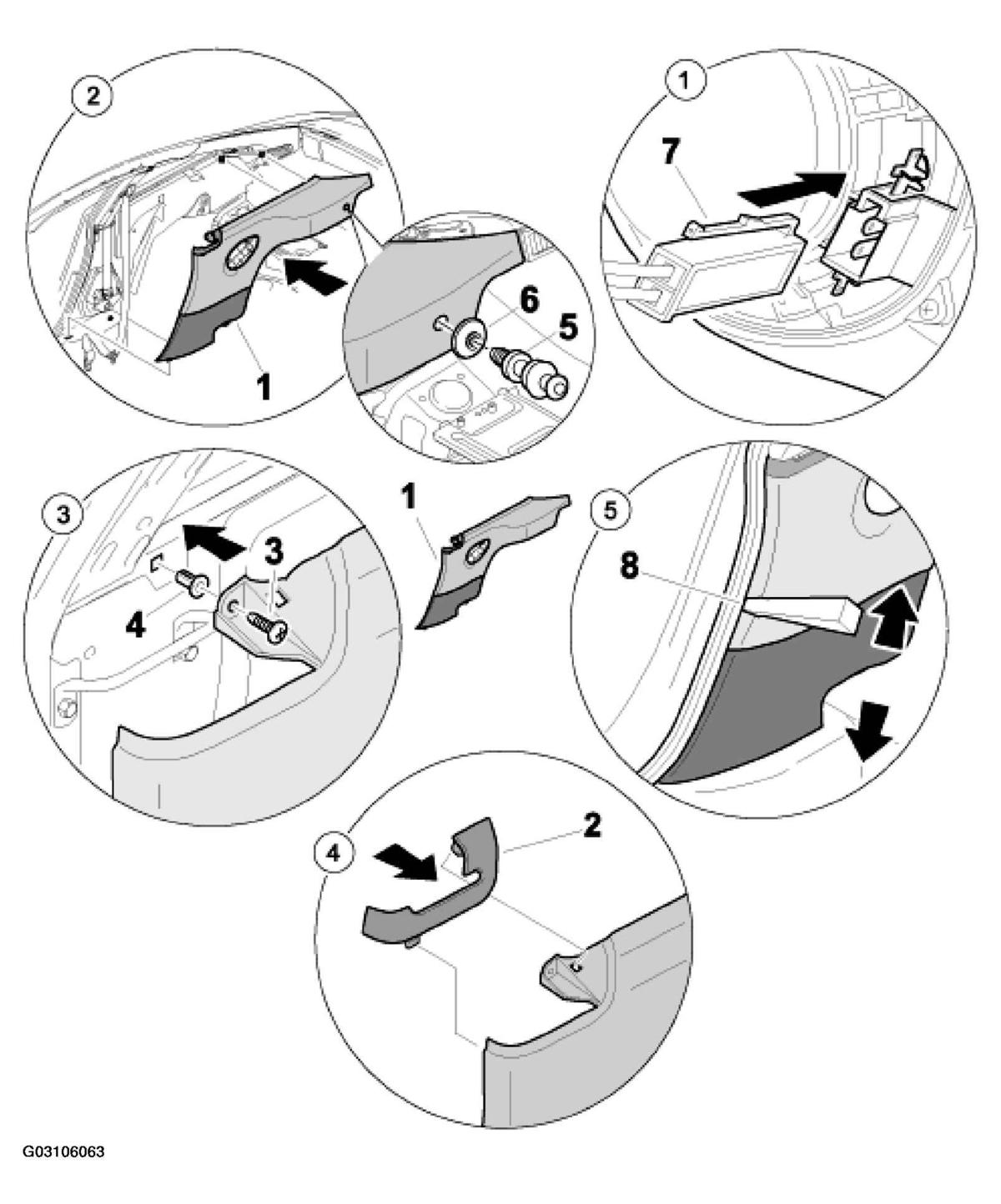

Fig 1: Installing Side-Panel Lining (As Of MY 1996)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE-PANEL LINING INSTALLING PROCEDURE (AS OF MY 1996)

No.	Procedure	Instructions
1	Connecting the electrical plug connections	Connect electrical plug connections -5- . See Fig 1 .
2	Side-panel lining	Position the side-panel lining -1- . See Fig 1 .
3	Tightening fastening screw	Check or renew the plug-in nut -4-3- . See Fig 1 .
4	Fitting cover	Position the locking tabs of the cover -2-arrow- . See Fig 1 .
5	Fitting seal	Lift up the pillar seal along the side-panel lining using a plastic spatula -arrow- . See Fig 1 .
	Installing B-pillar	See Removing and installing trim of A, B and C-pillars, - as of MY 1997 .
