Installing side-panel lining

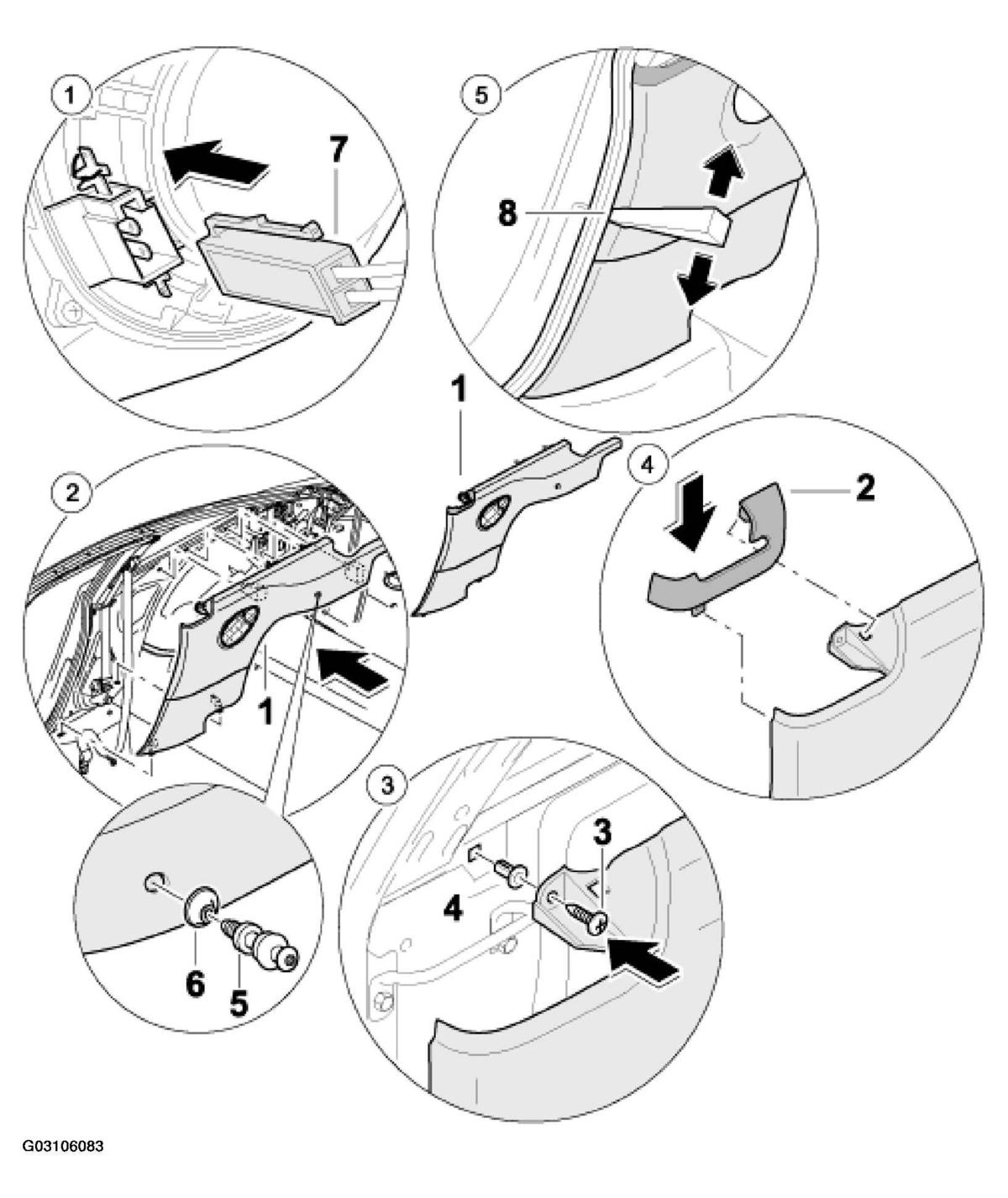

Fig 1: Installing Side-Panel Lining (Targa)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE-PANEL LINING INSTALLING PROCEDURE (TARGA)

No.	Procedure	Instructions
1	Connecting the electrical plug connections	Connect electrical plug connections -7- . See Fig 1 .
2	Side-panel lining	Position side trim -1-6-5- . See Fig 1 .
3	Tightening fastening screw	Check or renew the plug-in nut -4-3- . See Fig 1 .
4	Fitting cover	Position the locking tabs of the cover -2-arrow- . See Fig 1 .
5	Fitting seal	Lift up the pillar seal along the side-panel lining using a plastic spatula -arrow- . See Fig 1 .
	Installing B-pillar	See REMOVING AND INSTALLING A, B AND C-PILLARS - TARGA .
