Removing side-panel lining

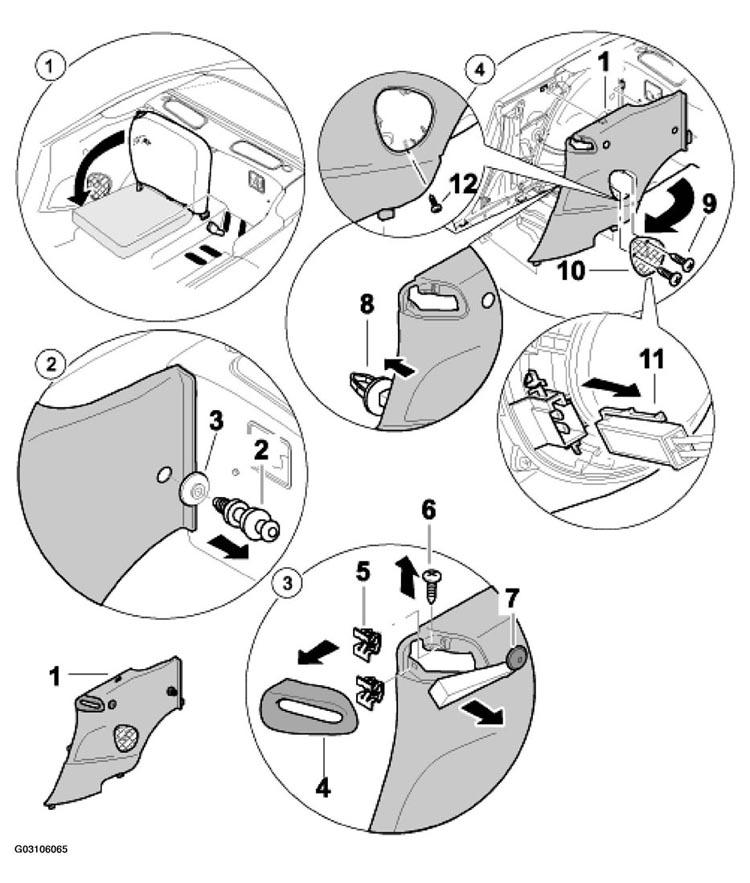

Fig 1: Removing Side-Panel Lining (Cabriolet, As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE-PANEL LINING REMOVING PROCEDURE (CABRIOLET, AS OF MY 1997)

No.	Procedure	Instructions
1	Folding over emergency seat backrest	Unlock emergency seat backrest and fold over.
2	Removing holding pegs and cover	Unscrew holding pegs -2-3- . See Fig 1 .
3	Pulling off cover	Pull cover -4-5-6-1-7- . See Fig 1 .
4	Removing side-panel lining	Loosen the fastening screws -9-12-1-11-1-8- . See Fig 1 .
