Installing side-panel lining

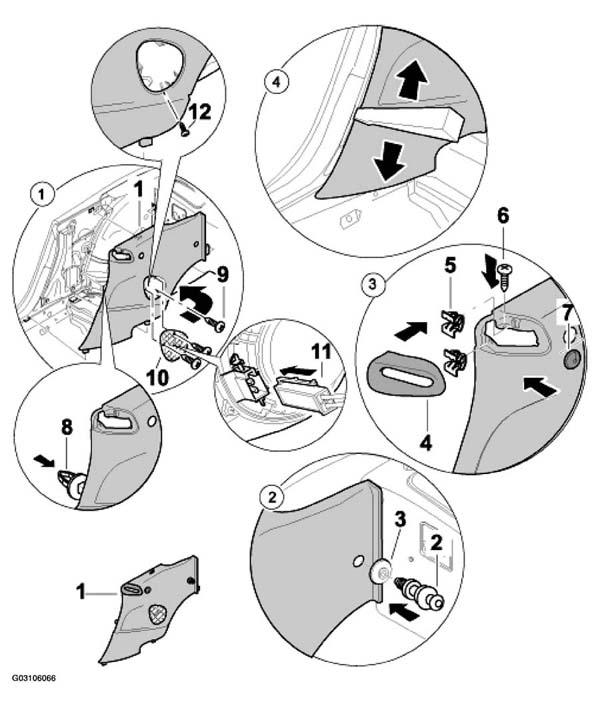

Fig 1: Installing Side-Panel Lining (Cabriolet, As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE-PANEL LINING INSTALLING PROCEDURE (CABRIOLET, AS OF MY 1997)

No.	Procedure	Instructions
1	Mount the side-panel lining	Insert pegs of the side-panel lining -1-8-12-11-1-9- . See Fig 1 .
2	Fitting holding pegs and cover	Position the cover trim -3-2- . See Fig 1 .
3	Fit cover	Press in collar -7-5-6-4-5- . See Fig 1 .
4	Fit seal	Lift up the pillar seal along the side-panel lining using a plastic spatula -arrow- . See Fig 1 .
