Removing roof lining, front

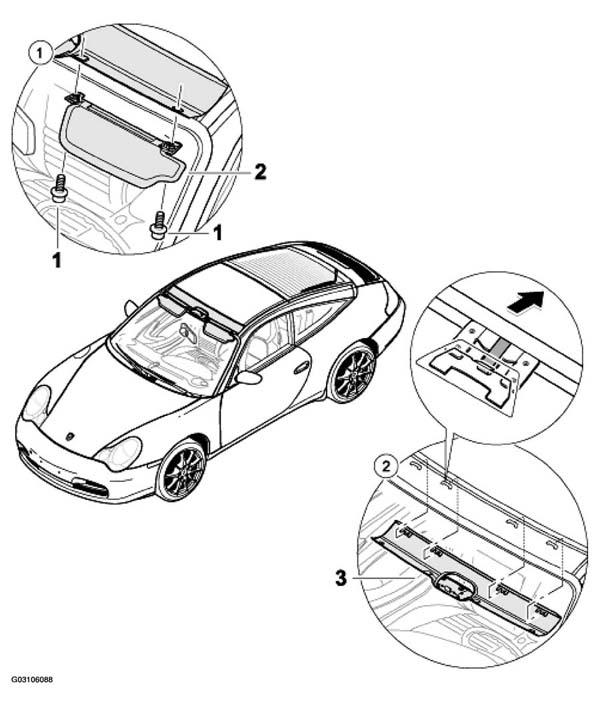

Fig 1: Removing Roof Lining, Front (Targa)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT ROOF LINING REMOVING PROCEDURE (TARGA)

No.	Procedure	Instructions
	Removing passenger compartment monitoring	Refer to REMOVING AND INSTALLING PASSENGER COMPARTMENT MONITORING SENSOR .
1	Remove sun visors	Unscrew fastening screw -1-2- . See Figure .
2	Removing roof lining	Pull roof lining -3-direction of arrow- . See Figure .
