Removing roof lining (roof rail flange cover)
ROOF RAIL FLANGE COVER REMOVING PROCEDURE (TARGA)
| No. | Procedure | Instructions |
|---|---|---|

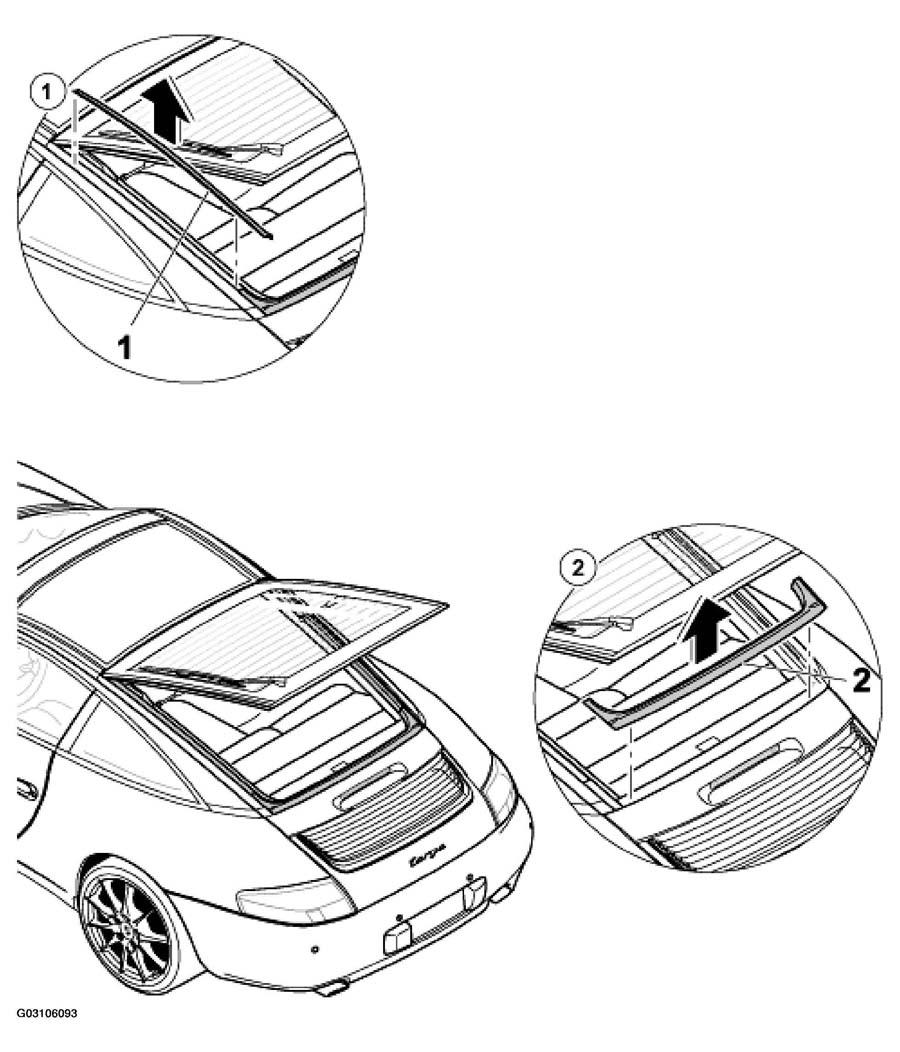

| 1 | Removing roof rail flange cover on the left and right | Pull of roof rail flange cover -1- . See Fig 1 . |
| 2 | Removing cover of rear centre panel | Removing the cover of the rear centre panel -2- . See Fig 1 . |
