Removing rear wall lining

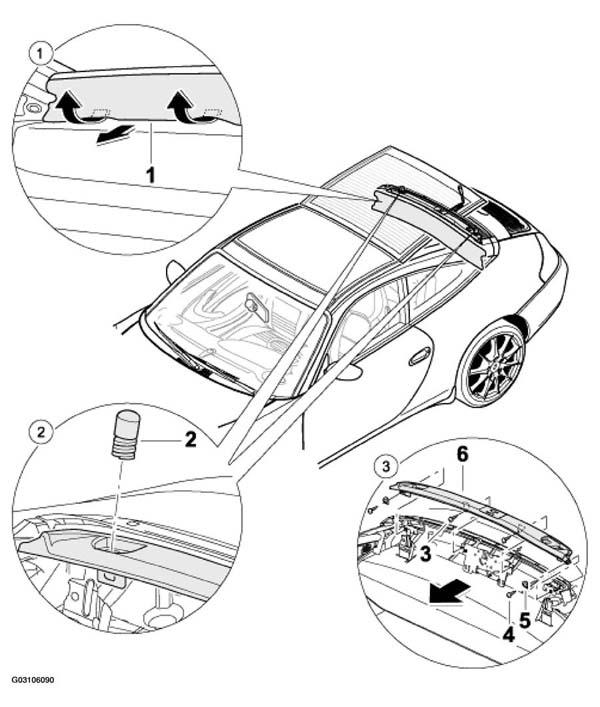

Fig 1: Removing Rear Wall Lining (Targa)
G03106090Courtesy of PORSCHE OF NORTH AMERICA, INC.
REAR WALL LINING REMOVING PROCEDURE (TARGA)

No. Procedure Instructions
1 Removing rear wall lining Hold rear wall lining at the side underneath and carefully pull out of the clips in the -direction of arrow-  . See Fig 1 .
2 Unscrewing rubber adjustment stop Unscrew rubber adjustment stop -2-  . See Fig 1 .
3 Removing the cover Unscrew fastening screws -3, 4-6-  . See Fig 1 .
