Install rear wall lining

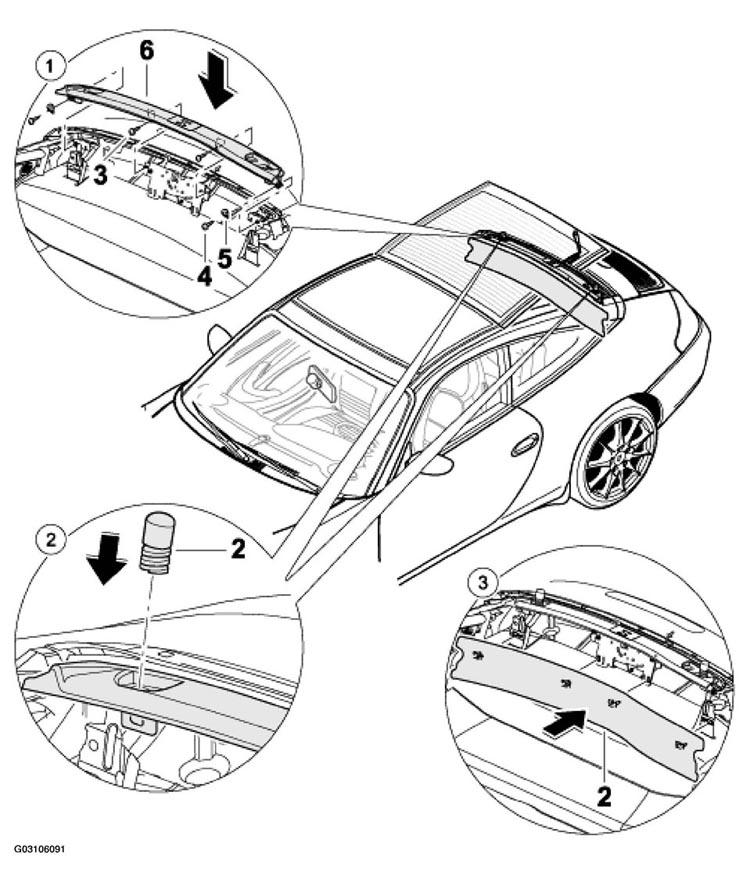

Fig 1: Installing Rear Wall Lining (Targa)
G03106091Courtesy of PORSCHE OF NORTH AMERICA, INC.
REAR WALL LINING INSTALLING PROCEDURE (TARGA)

No. Procedure Instructions
1 Installing cover Position cover -6-3, 4-5-  . See Fig 1 .
2 Screwing in rubber adjustment stop Screw in rubber adjustment stop -2-  . See Fig 1 .
3 Installing rear wall lining Position rear wall lining and press into place in the -direction of arrow-  . See Fig 1 .
