Removing and installing oddments compartment lid

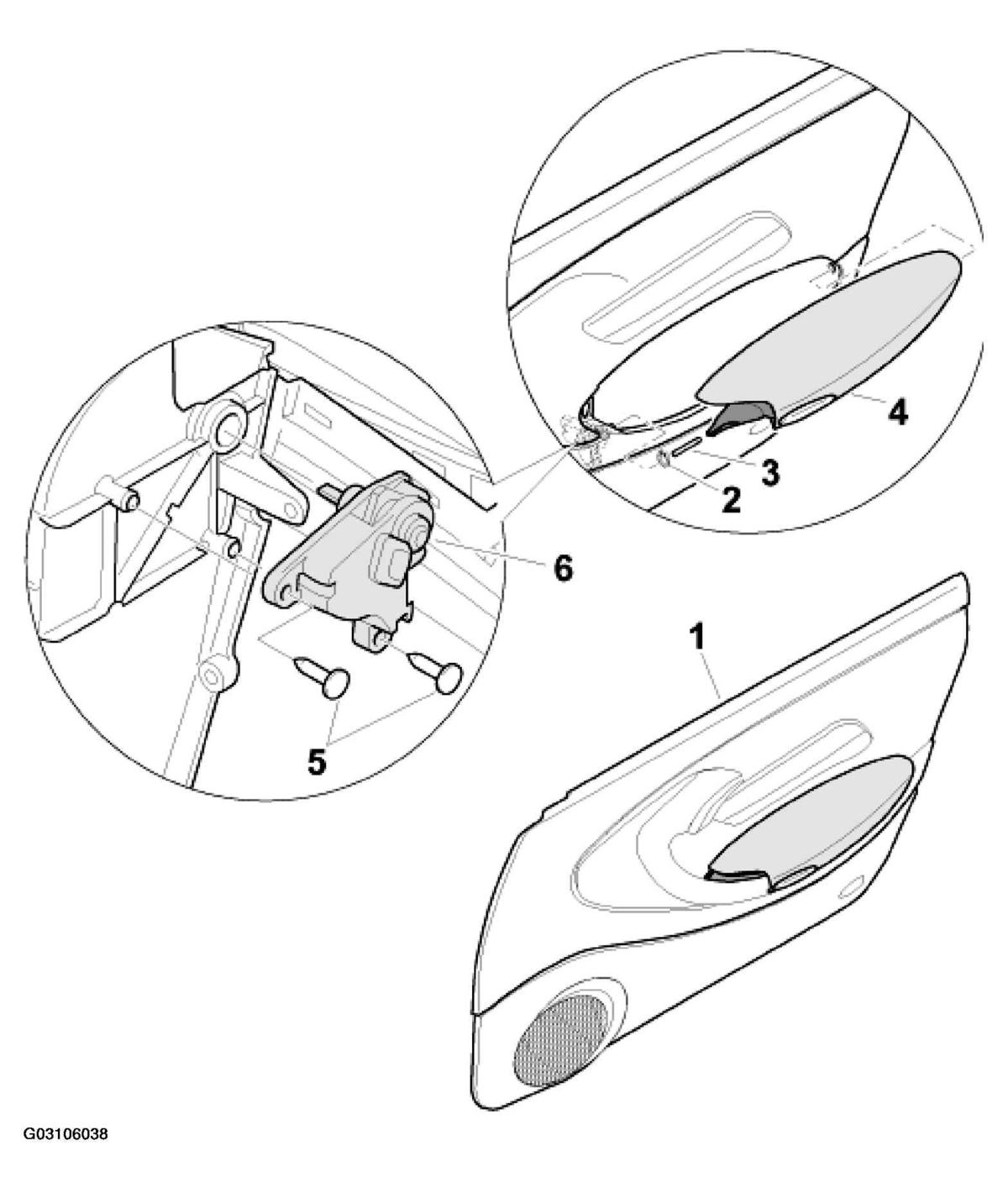

Fig 1: Removing And Installing Oddments Compartment Lid (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ODDMENTS COMPARTMENT LID REMOVING AND INSTALLING PROCEDURE (AS OF MY 1997)

No.	Designation	Qty.	Removal	Installation
1	Door trim panel
2	Snap ring 11 x 1	1	Remove the snap ring -2- . See Fig 1 .	Put the snap ring onto the shaft with a snap ring pliers -3- . See Fig 1 .
3	Shaft	1	Pull the shaft -3-6-4- . See Fig 1 .	Position lid -4-1-6-3- . See Fig 1 .
4	Lid for oddments compartment	1	To remove lid for oddments compartment -4- . See Fig 1 .
5	Oval-head screw 4.2 x 14	2
6	Guide mechanism	1	Undo sheetmetal screws-5- . See Fig 1 .	Position the guide mechanism -6-5- . See Fig 1 .
