Removing roof member trim

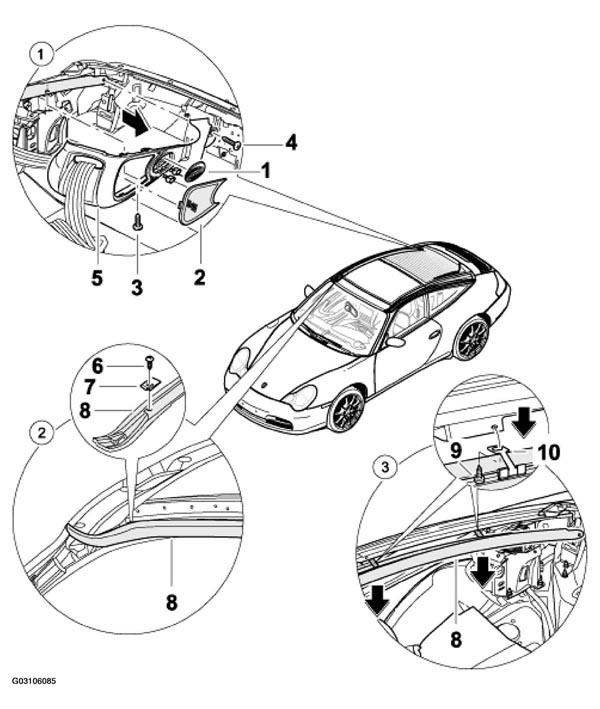

Fig 1: Removing Roof Member Trim (Targa, As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ROOF MEMBER TRIM REMOVING PROCEDURE (TARGA, AS OF MY 2002)

No.	Procedure	Instructions
	Removing A and C-pillars	See REMOVING AND INSTALLING A, B AND C-PILLARS - TARGA .
1	Removing rear belt cover	Reach into the cover -2-3, 4-5-1- . See Fig 1 .
2	Unscrewing the front fastening screw	Unscrew the fastening screw -6-7-8- . See Fig 1 .
3	Removing roof member trim	Unscrew fastening screws -9-10-8-direction of arrow- . See Fig 1 .
