Installing roof rail trim

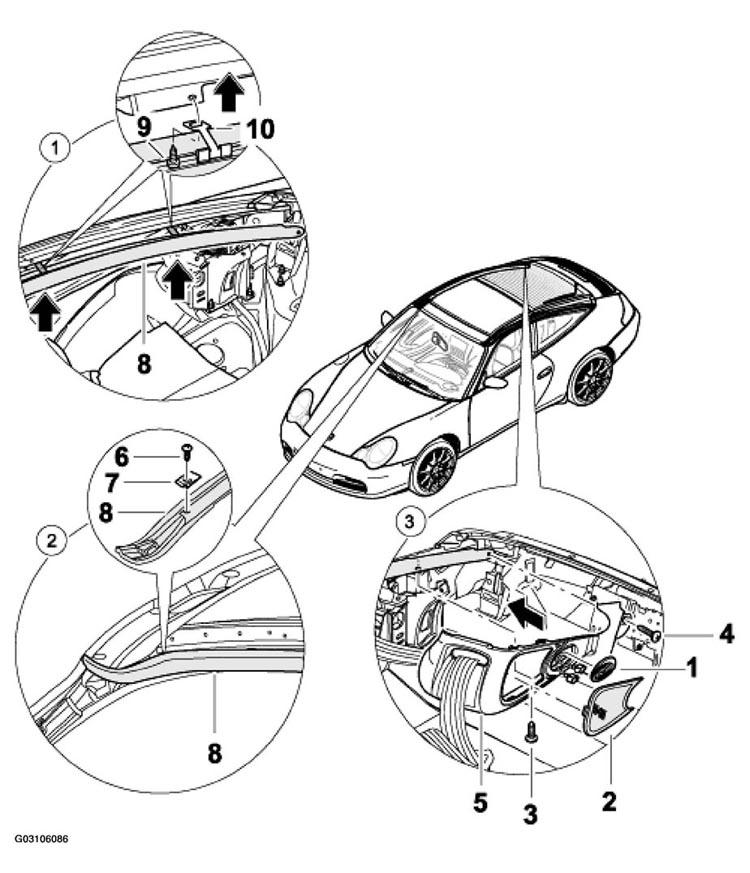

Fig 1: Installing Roof Rail Trim (Targa, As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ROOF RAIL TRIM INSTALLING PROCEDURE (TARGA, AS OF MY 2002)

No.	Procedure	Instructions
1	Installing roof rail trim	Position roof member trim -8-10-9- . See Fig 1 .
2	Screwing in the front fastening screw	Position the fastening screw -6-7-8- . See Fig 1 .
3	Installing rear belt cover	Position belt cover -5-3,4-2-1- . See Fig 1 .
	Installing A and C-pillars	See REMOVING AND INSTALLING A, B AND C-PILLARS - TARGA .
