Removing and installing trims units

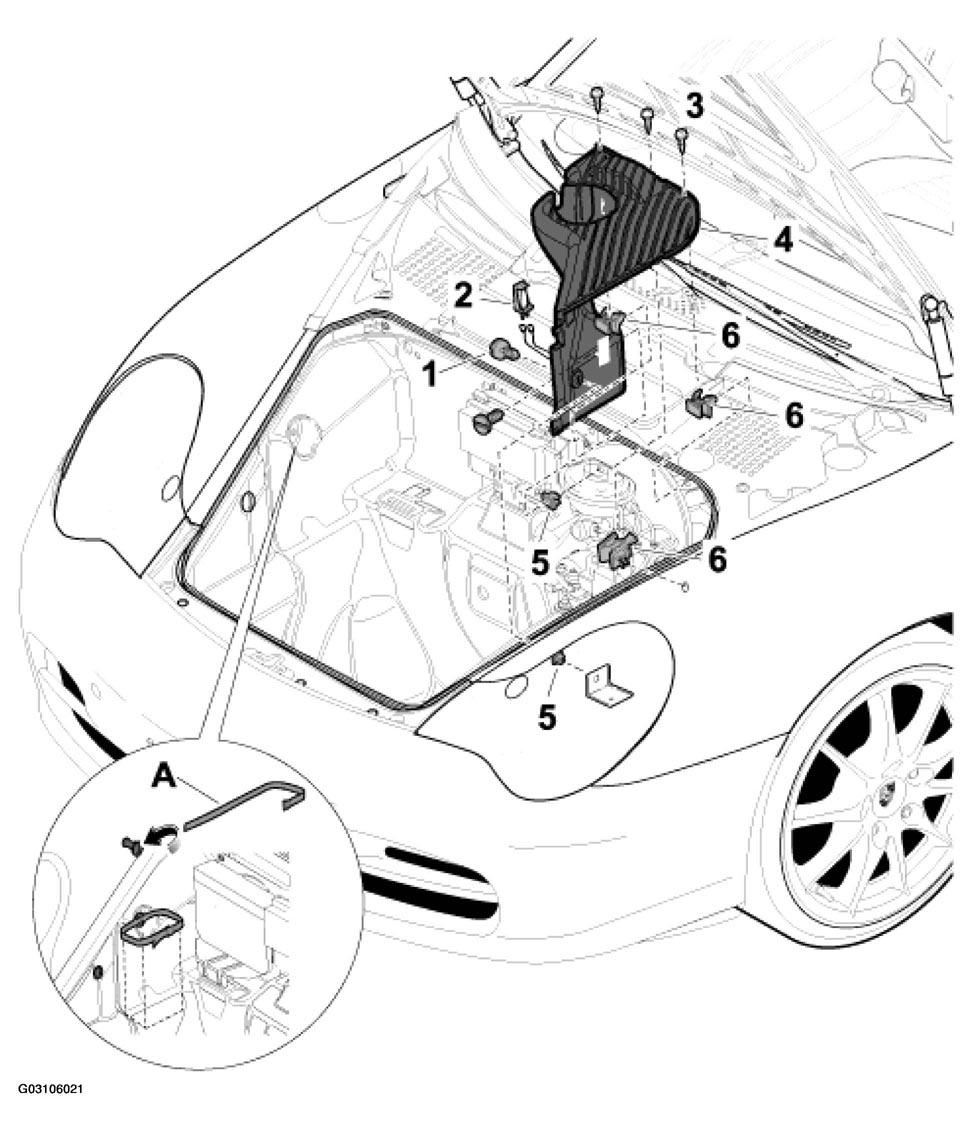

Shown on 911 Carrera (996)
TRIMS UNITS REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Cam | 2 | Turn 90° and remove. | Position and turn 90°. |
| 2 | Interior light | 1 | Press out. | Press in. |
| 3 | Fastening screws | 3 | Unscrew. | Screw in. |
| 4 | Trim units | 1 | Unscrew fastening screws-3- . See Fig 1 . | Screw in fastening screws -3- . See Fig 1 . |
| 5 | Holder | 2 | ||
| 6 | Holder | 2 |
