Removing and installing trims units with PSM

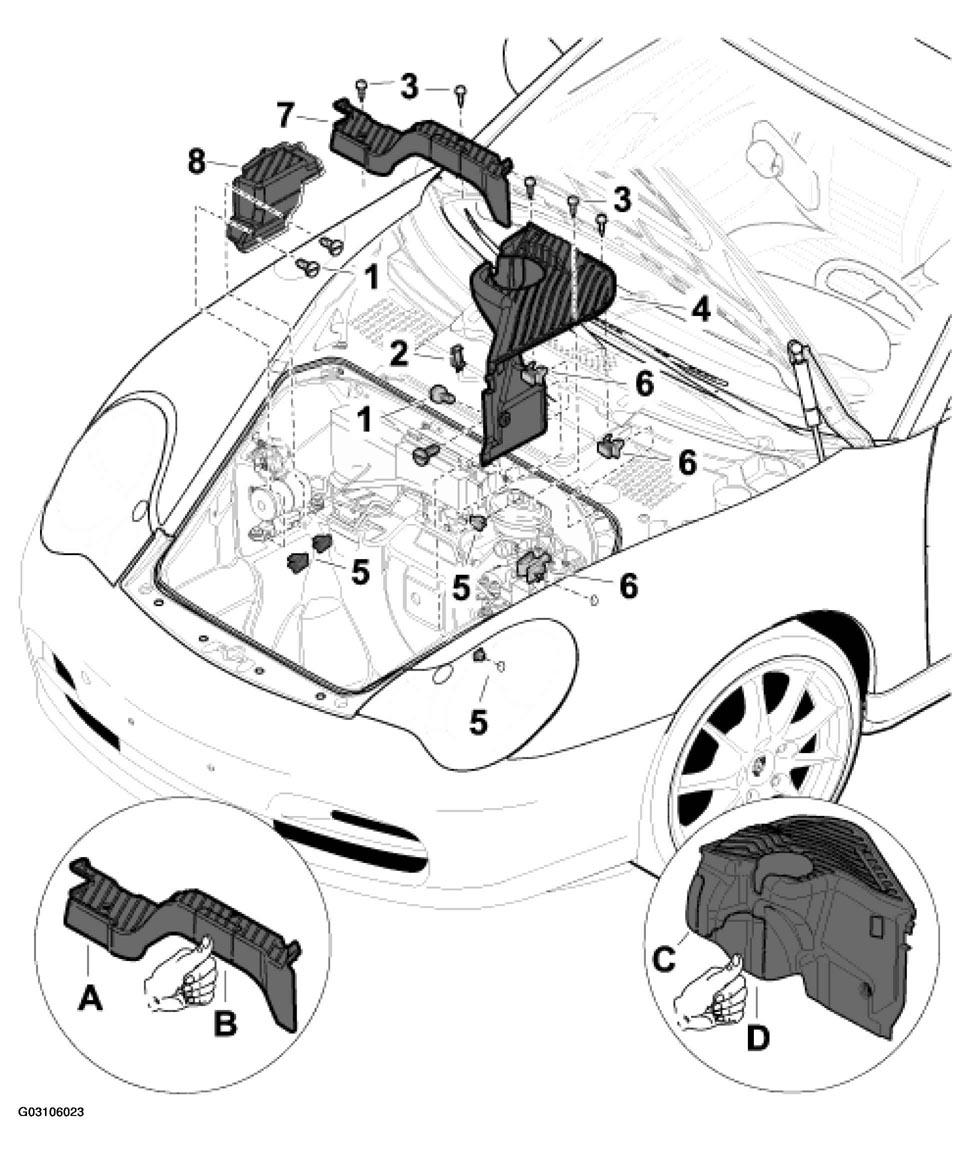

Fig 1: Removing And Installing Front Trims Units With PSM

G03106023

Courtesy of PORSCHE OF NORTH AMERICA, INC.

TRIMS WITH PSM REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Cam	2	Turn 90° and remove.	Position and turn 90°.
2	Interior light	1	Press out.	Press in.
3	Fastening screws	3	Unscrew.	Screw in.
4	Trim units	1	Unscrew fastening screws -3- . See Fig 1 .	Screw in fastening screws -3- . See Fig 1 .
5	Holder	2
6	Holder	2
7	Trim units	1	Unscrew fastening screws-3- . See Fig 1 .	Screw in fastening screws -3- . See Fig 1 .
8	Trim units	1	Turn cam -1- . See Fig 1 .	Turn cam -1- . See Fig 1 .

NOTE:

When replacing the trim units -4, 7- the recesses -A, B, C, D- must be knocked out in accordance with the vehicle equipment. See Fig 1 .
A = recess for CD changer. See Fig 1 .
B = recess for CD amplifier. See Fig 1 .
C = recess for amplifier. See Fig 1 .
D = recess for PSM. See Fig 1 .
