Removing and installing trims units - Carrera 4

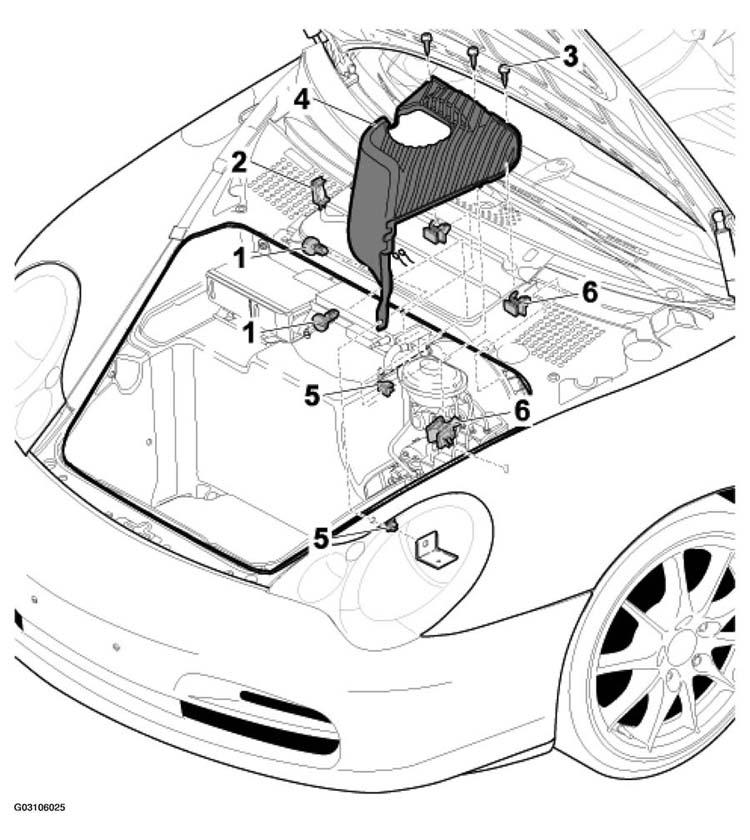

Fig 1: Removing And Installing Trims Units - Carrera 4
G03106025Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING AND INSTALLING TRIMS UNITS PROCEDURE - CARRERA 4

No. Designation Qty. Removal Installation
1 Cam 2 Turn 90° and remove. Position and turn 90°.
2 Interior light 1 Press out. Press in.
3 Fastening screws 3 Unscrew. Screw in.
4 Trim units 1 Unscrew fastening screws -3-  . See Fig 1 . Screw in fastening screws -3-  . See Fig 1 .
5 Holder 2
6 Holder 2
